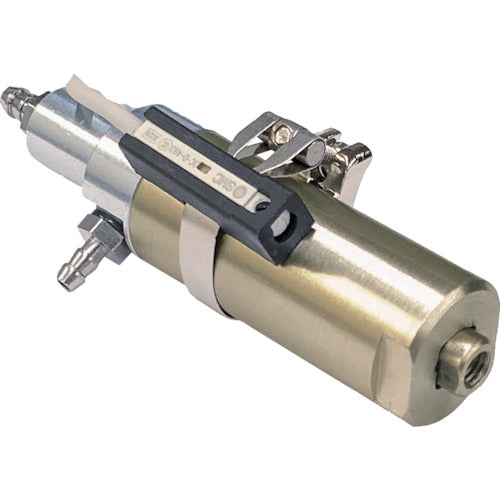

Einz Adsorption Composite Cylinder (with Sensor) VMCP-10-C 1 pc

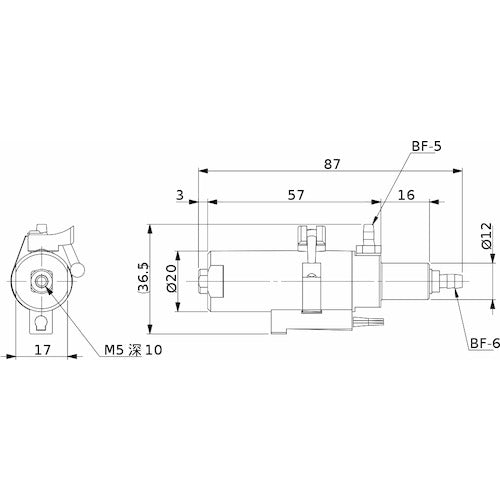

Catalog number: VMCP-10-C Features: ● A vacuum suction passage is installed on the rod. ● By attaching the suction attachment head, a suction pad can be attached. ● Comes with a sensor for checking cylinder operation. Specifications: ● Stroke (mm): 10 ● Width (mm): 17 ● Depth (mm): 87 ● Height (mm): 36.5 ● Type: Single acting ● Output (N): 62 ● Structure: Single acting ● Air pressure used: 0.3 to 0.5 MPa ● Output: 10st (54N), 20st (62N), 30st (60N) ● Piping: Suction (φ6), Cylinder operation (φ4) ● Installation: φ12
