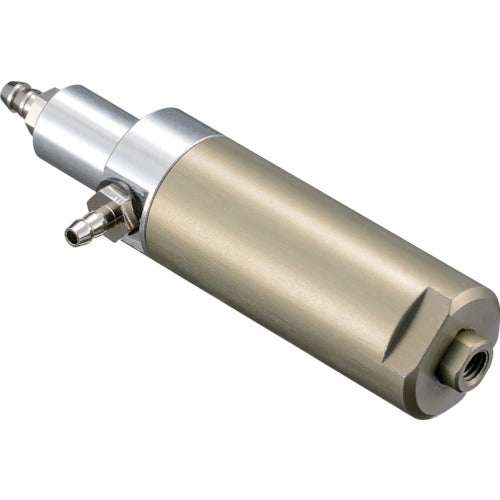

Einz Adsorption Composite Cylinder VMCP-10 1 piece

Einz Adsorption Composite Cylinder VMCP-10 1 piece

JAN：4570198792194 　
Ainz Products Bearings, drive equipment, transmission parts cylinder Mechatronics Parts Robot hand parts
¥6,856
¥6,856
Sale Sold out
Shipping calculated at checkout.

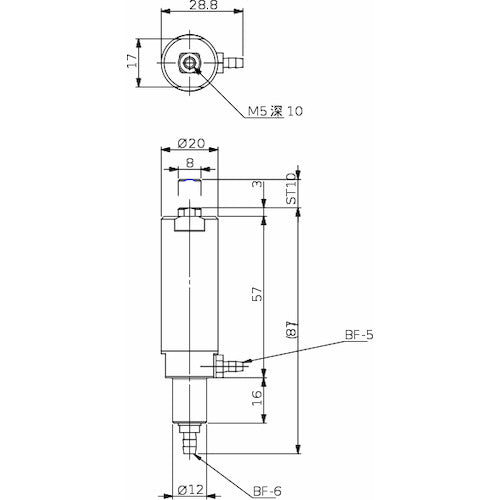

Catalog number: VMCP-10 Features: ● Vacuum suction passage is installed on the cylinder rod. ● By attaching the suction attachment head, a suction pad can be attached. ● Can be connected to the Jungle Gym series. Specifications: ● Stroke (mm): 10 ● Width (mm): 17 ● Depth (mm): 87 ● Height (mm): 30 ● Type: Single acting ● Output (N): 54 ● Structure: Single acting ● Air pressure used: 0.3 to 0.5 MPa ● Output: 10st (54N), 20st (62N), 30st (60N) ● Piping: Suction (φ6), Cylinder operation (φ4) ● Installation: φ12
