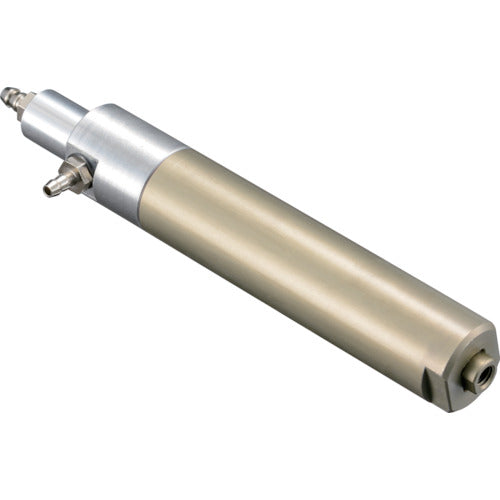

Einz Adsorption Composite Cylinder VMCP-30 1 pc

Einz Adsorption Composite Cylinder VMCP-30 1 pc

JAN：4570198792156 　
Ainz Products Bearings, drive equipment, transmission parts cylinder Mechatronics Parts Robot hand parts
¥7,632
¥7,632
Sale Sold out
Shipping calculated at checkout.

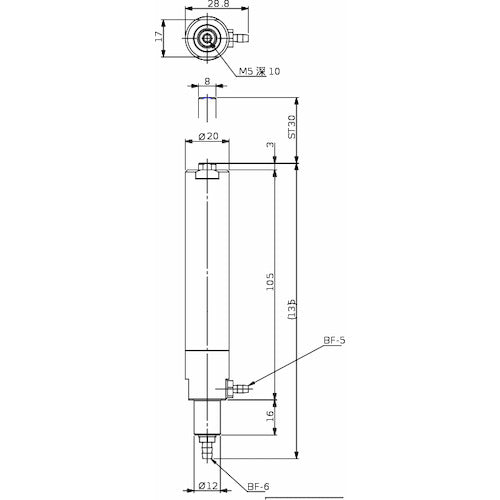

Catalog number: VMCP-30 Features: ● A vacuum suction passage is installed on the rod. ● By attaching the suction attachment head, a suction pad can be attached. Specifications: ● Stroke (mm): 30 ● Width (mm): 17 ● Depth (mm): 105 ● Height (mm): 30 ● Type: Single acting ● Output (N): 62 ● Structure: Single acting ● Air pressure used: 0.3 to 0.5 MPa ● Output: 10st (54N), 20st (62N), 30st (60N) ● Piping: Suction (φ6), Cylinder operation (φ4) ● Installation: φ12
