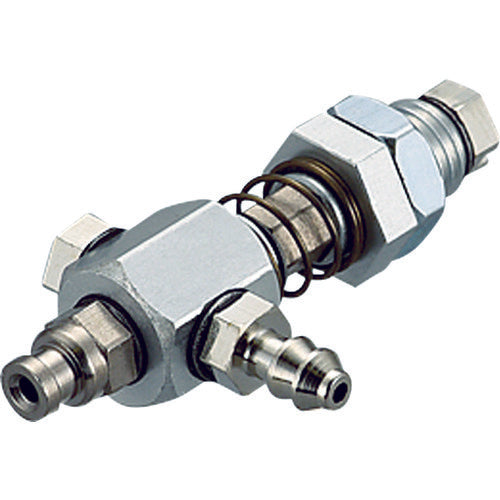

Einz Suction bracket, non-rotating, for micro VFILB-MSH 1 piece

Einz Suction bracket, non-rotating, for micro VFILB-MSH 1 piece

JAN：4570198793566 　
Ainz Products Bearings, drive equipment, transmission parts Mechatronics Parts Robot hand parts Suction bracket
¥2,070
¥2,070
Sale Sold out
Shipping calculated at checkout.

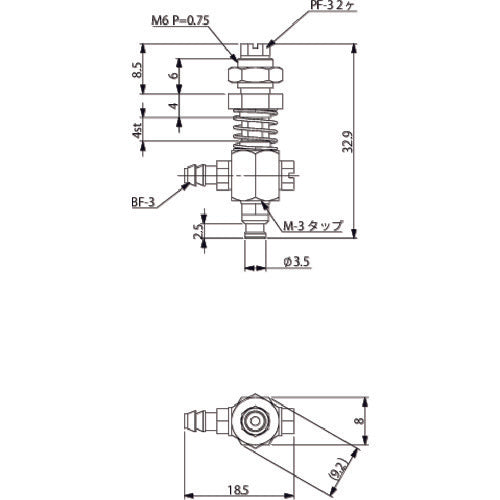

Catalog number: VFILB-MSH Features: ● Shock is absorbed by the built-in spring. ● Suction pads can be easily attached. ● Anti-rotation structure with hexagonal shaft. Specifications: ● Diameter (mm): 9.2 ● Mounting connection: M6 x 0.75 ● Height (mm): 32.9 ● Stroke (mm): 4 ● Vacuum outlet ● Series: Micro ● Shaft: Anti-rotation type ● Mounting screw: M6 * 0.75 ● Connection hose diameter: φ4
