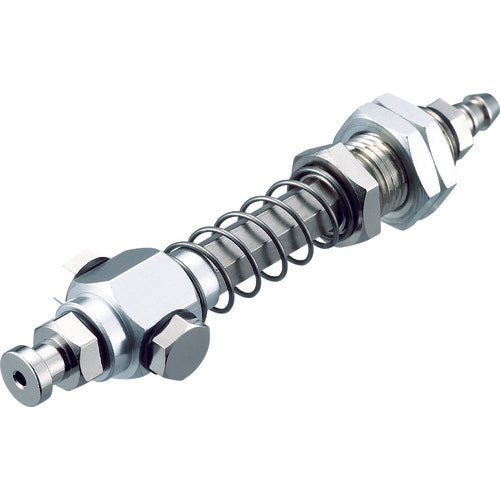

Einz Suction bracket, non-rotating, for mini VFILB2-SSH-20 1 piece

Einz Suction bracket, non-rotating, for mini VFILB2-SSH-20 1 piece

JAN：4570198792736 　
Ainz Products Bearings, drive equipment, transmission parts Mechatronics Parts Robot hand parts Suction bracket
¥2,782
¥2,782
Sale Sold out
Shipping calculated at checkout.

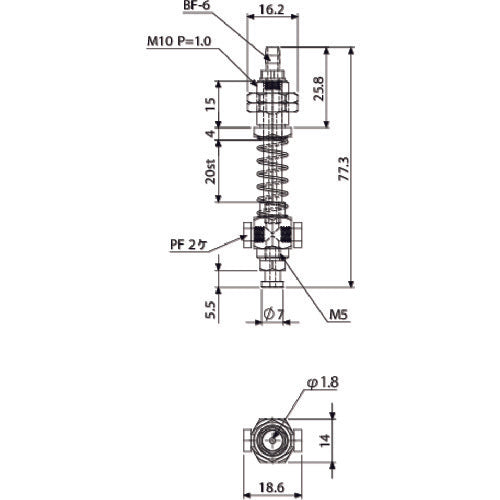

Catalog number: VFILB2-SSH-20 Features: ● Shock is absorbed by the built-in spring. ● Suction pads can be easily attached. ● Anti-rotation structure with hexagonal shaft. Specifications: ● Diameter (mm): 19.6 ● Mounting connection: M10 x 1.0 ● Height (mm): 77.3 ● Stroke (mm): 20 ● Vacuum outlet ● Series: Mini ● Shaft: Anti-rotation type ● Mounting screw: M10 * 1.0 ● Connection hose diameter: φ6
