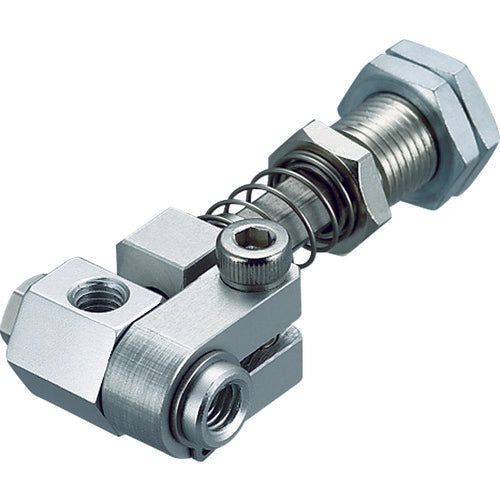

Einz suction bracket, non-rotating, angle adjustable VFILBR-H-10 1 piece
Einz suction bracket, non-rotating, angle adjustable VFILBR-H-10 1 piece
Regular price
¥4,554
Regular price
Sale price
¥4,554
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: VFILBR-H-10 Features: ● Shock is absorbed by the built-in spring. ● Suction pads can be easily attached. ● Anti-rotation structure with hexagonal shaft. Specifications: ● Diameter (mm): 24.3 ● Mounting connection: M10 x 1.0 ● Height (mm): 57 ● Stroke (mm): 10 ● Vacuum outlet ● Angle adjustable ● Shaft: Anti-rotation ● Pipe thread: M5 ● Mounting thread: M10 * 1.0 ● Connection hose diameter: φ6mm
