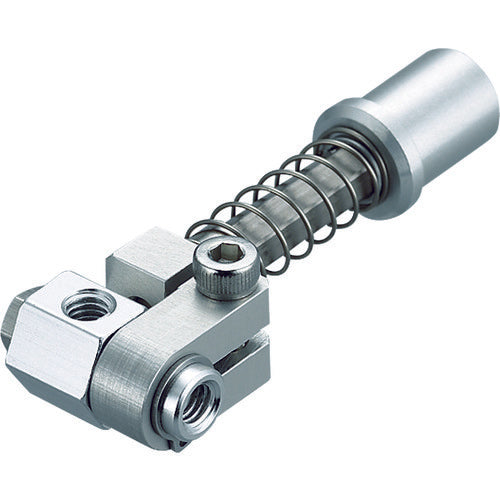

Einz suction bracket, non-rotating, angle adjustment VFILBR-H-20-P12 1 piece

Einz suction bracket, non-rotating, angle adjustment VFILBR-H-20-P12 1 piece

JAN：4570198793184 　
Ainz Products Bearings, drive equipment, transmission parts Mechatronics Parts Robot hand parts Suction bracket
¥4,554
¥4,554
Sale Sold out
Shipping calculated at checkout.
Catalog number: VFILBR-H-20-P12 Features: ● Shock is absorbed by the built-in spring. ● Suction pads can be easily attached. ● Anti-rotation structure with hexagonal shaft. ● Can be directly attached to a jungle gym. Specifications: ● Diameter (mm): 24.3 ● Mounting connection: φ12 ● Height (mm): 69 ● Stroke (mm): 20 ● Vacuum outlet ● Angle adjustable ● Shaft: Anti-rotation ● Pipe thread: M5 ● Connection: Jungle gym φ12 ● Connection hose diameter: φ6mm
