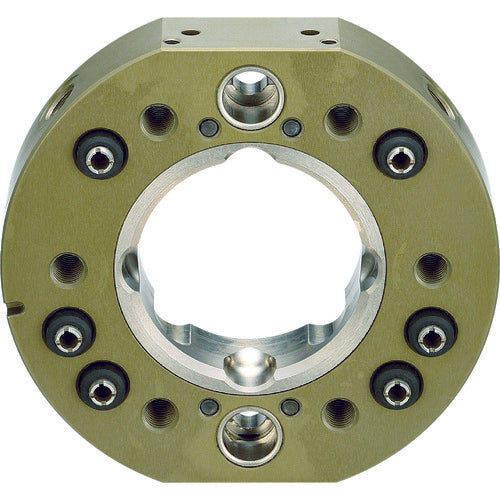

Einz Articulated Tool Changer Tool Side OX-35AI 1 piece

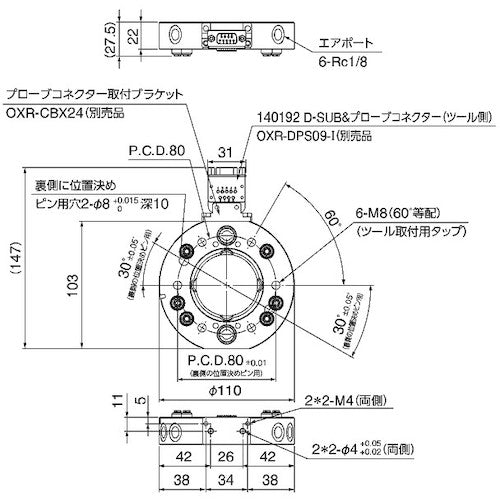

Catalog number: OX-35AI Features: ● Equipped with a unique release mechanism. (Patent No. 4126074) ● Built-in fail-safe mechanism. ● Built-in air check valve. ● Tool changer for small and medium-sized robots. ● Air options can be added. Specifications: ● Type: Tool side ● Installation position: Tool side ● Width (mm): 110 ● Depth (mm): 27.5 ● Height (mm): 103 ● Transportable weight (kg): Up to 35 ● Pull-in force/push-out force (N): 4000/750 ● Transportable weight: Up to 35kg ● Thickness when connected: 60mm ● Piston operation confirmation sensor can be installed (OP) ● Air pressure used: 0.5 to 0.7MPa ● Position repeatability: ±0.02mm ● Piping connection: 8 circuits (Rc1/8)
