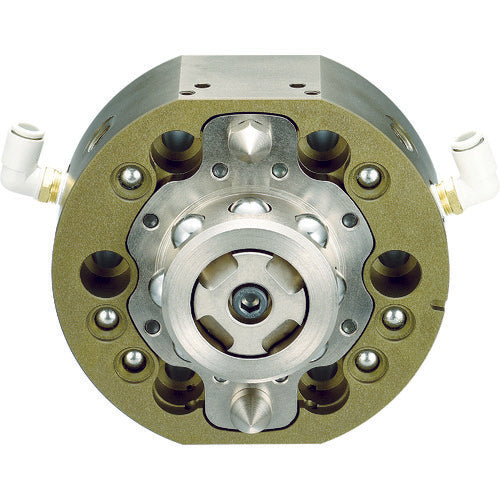

Einz Articulated Tool Changer, Robot Side, OX-35A, 1 piece

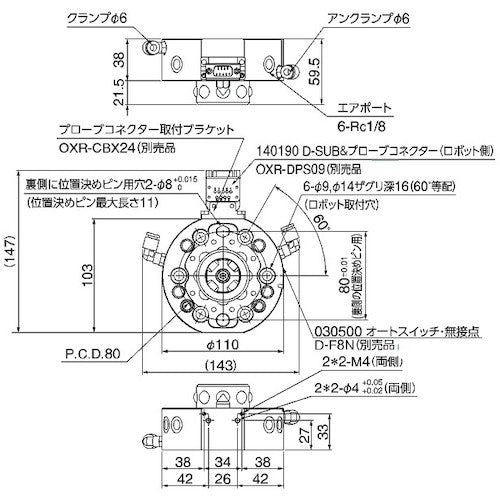

Catalog number: OX-35A Features: ●Robot hands can be easily replaced in a short time. ●Equipped with a unique detachment mechanism. (Patent No. 4126074) ●Built-in fail-safe mechanism. ●Built-in air check valve. ●Tool changer for small and medium-sized robots. ●Air options can be added. ●Hybrid structure with ultra-duralumin frame and steel detachable part. Specifications: ●Type: Robot side ●Installation position: Robot side ●Width (mm): 141.8 ●Depth (mm): 59.5 ●Height (mm): 103 ●Carrying capacity (kg): Up to 35 ●Pull-in force/push-out force (N): 4000/750 ●Installation connection ●Vacuum outlet ●Carrying capacity: Up to 35kg ●Thickness when connected: 60mm ●Piston operation check sensor can be installed (OP) ●Air pressure used: 0.5 to 0.7MPa ●Position repeatability: ±0.02mm ●Pipe connection: 8 circuits (Rc1/8)
