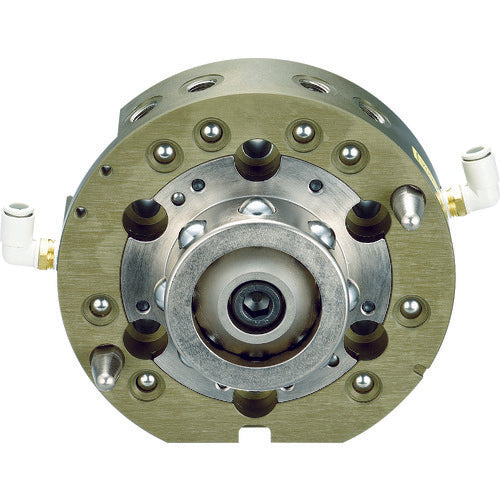

Einz Articulated Tool Changer, Robot Side, OX-60A, 1 piece

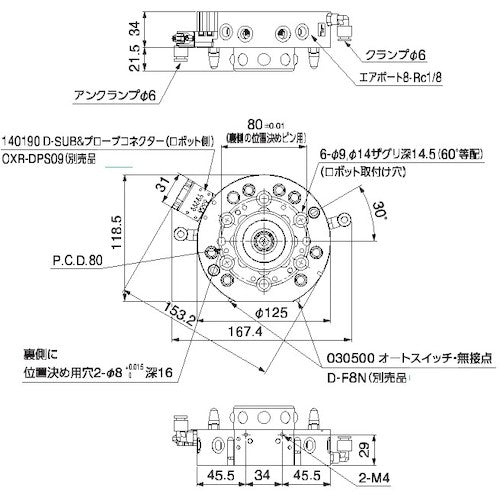

Catalog number: OX-60A Features: ● Equipped with a unique release mechanism. (Patent No. 4126074) ● Built-in fail-safe mechanism. ● Built-in air check valve. ● Tool changer for small and medium-sized robots. ● Air options can be added. Specifications: ● Type: Robot side ● Installation position: Robot side ● Width (mm): 167.4 ● Depth (mm): 55.5 ● Height (mm): 118.5 ● Transportable weight (kg): Up to 60 ● Pull-in force/push-out force (N): 6000/180 ● Installation connection ● Vacuum outlet ● Transportable weight: Up to 60kg ● Thickness when connected: 56mm ● Piston operation check sensor can be installed (OP) ● Air pressure used: 0.5 to 0.7MPa ● Position repeatability: ±0.02mm ● Piping connection: 8 circuits (Rc1/8)
