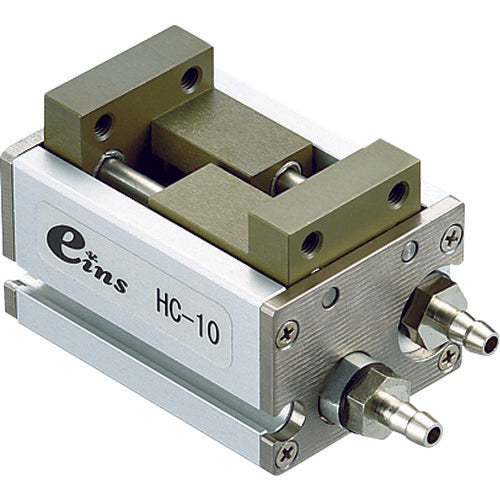

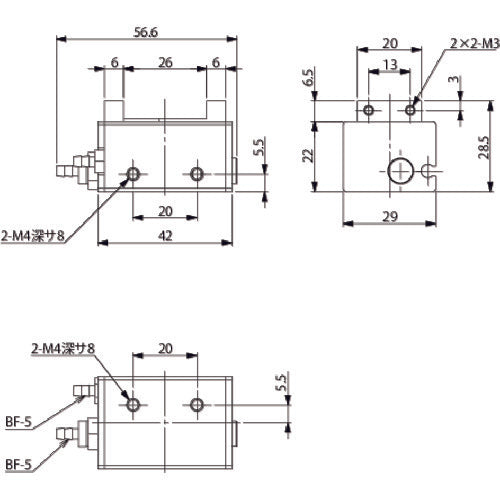

Catalog number: HC-10 Features: ●Low overall height, compact body that does not take up space. Specifications: ●Type: Double acting ●Width (mm): 29 ●Depth (mm): 57 ●Height (mm): 29 ●Stroke (mm): 10 ●Grip force (at operating pressure of 0.4 MPa) (N): 15 ●Attached coupling: BF-5 (×2) ●Cylinder diameter (mm): 10 ●Structure: Single acting type/double acting type ●Operating pressure: 0.3 to 0.6 MPa ●Grip force: Closed 15 N, Open 15 N (at operating pressure of 0.4 MPa) ●Connection hose: φ4 mm
