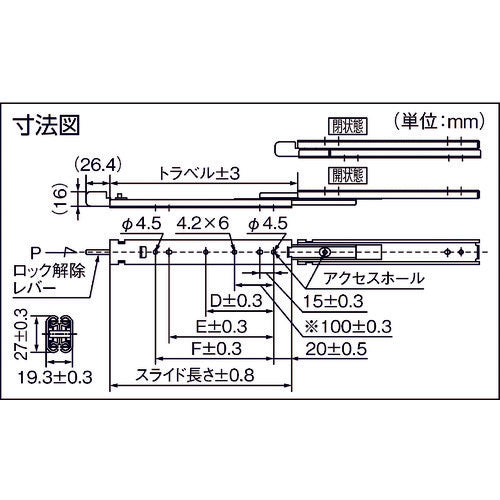

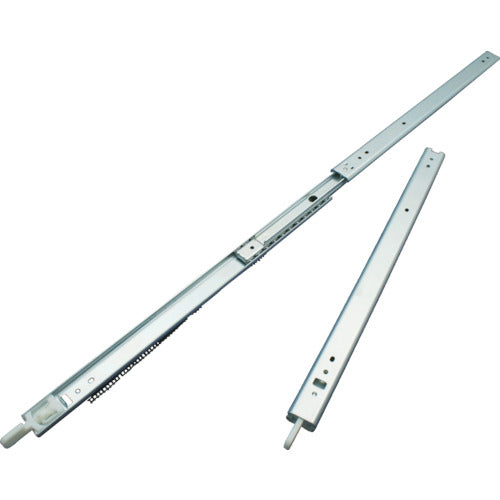

Catalog number: C2739-25CL Features: ● Comes with a locking mechanism when fully closed. The lock can be released by operating the lever. ● Full-travel slide rail that allows the drawer members to be pulled out completely. Applications: ● For drawers of tool boxes, home equipment, factory equipment, machines, etc. Specifications: ● Width (mm): 19.3 ● Height (mm): 27 ● Length (mm): 250 ● Travel distance (mm): 256 ● Rated load (N) pair/vertical: 284 ● Type: Light load ● For light loads ● 3-member full-travel type ● Drawer members cannot be removed ● Mounting screws: Bind (M3, M4) or truss machine screws (M3) ● Stop type Material/Finish: ● Steel (SPCC) ● Surface treatment: Trivalent chromium plating finish Note: ● The total length of the slide rail dimensions does not include the lock lever (26 mm).
