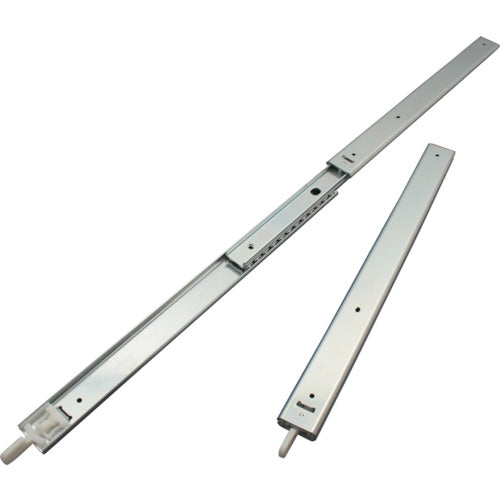

Accuride Closed Lock Slide Rail Length 355.6mm C301-14CL 1 piece

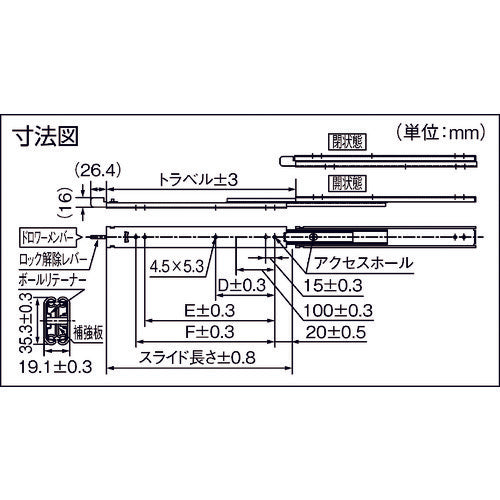

Catalog number: C301-14CL Features: ● Comes with a locking mechanism when fully closed. The lock can be released by operating the lever. ● Full-travel slide rail that allows the drawer member to be pulled out completely. Applications: ● Drawers for tool boxes, home equipment, factory equipment, product shelves, etc. Specifications: ● Width (mm): 19.1 ● Height (mm): 35.3 ● Length (mm): 355.6 ● Travel distance (mm): 371.2 ● Rated load (N) pair/vertical: 604 ● Type: Medium load ● For medium loads ● 3-member full-travel type ● Drawer members cannot be removed ● Mounting screws: Bind (M4) or truss machine screws (M4) ● Stop type Material/Finish: ● Steel (SPCC) ● Surface treatment: Trivalent chromium plating finish Note: ● The total length of the slide rail dimensions does not include the lock lever (26 mm). ● When used horizontally, the rated load is 1/4 of the indicated value.
