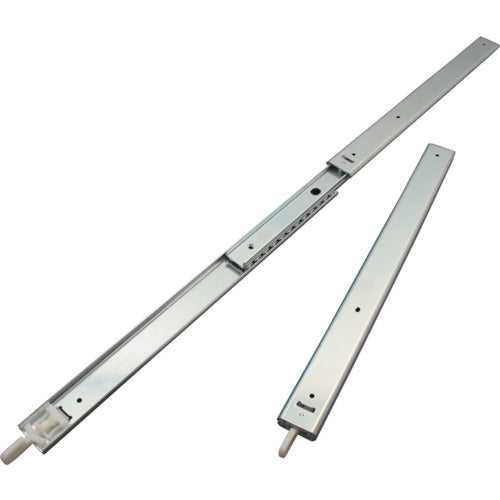

Accuride Closed Lock Slide Rail Length 558.8mm C301-22CL 1 piece

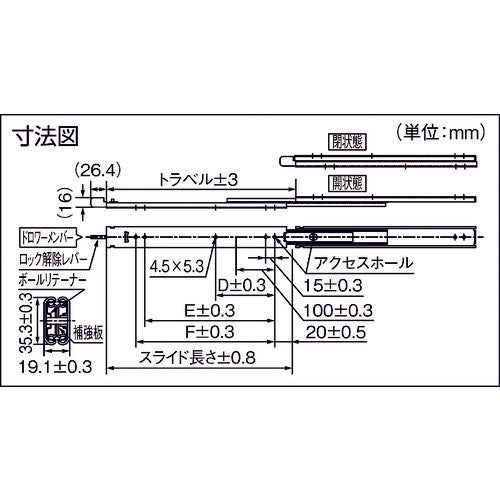

Catalog number: C301-22CL Features: ●Lock mechanism when fully closed. The lock can be released by operating the lever. ●Full-travel slide rail that allows the drawer member to be pulled out completely. Applications: ●Drawers for tool boxes, home equipment, factory equipment, product shelves, etc. Specifications: ●Width (mm): 19.1 ●Height (mm): 35.3 ●Length (mm): 558.8 ●Travel distance (mm): 574.4 ●Rated load (N) pair/vertical: 463 ●Type: Medium load ●For medium loads ●3-member full-travel type ●Drawer members cannot be removed ●Mounting screws: Bind (M4) or truss machine screws (M4) ●Stop type Material/Finish: ●Steel (SPCC) ●Surface treatment: Trivalent chromium plating finish Note: ●The total length of the slide rail dimensions does not include the lock lever (26 mm). ●When used horizontally, the rated load is 1/4 of the indicated value.
