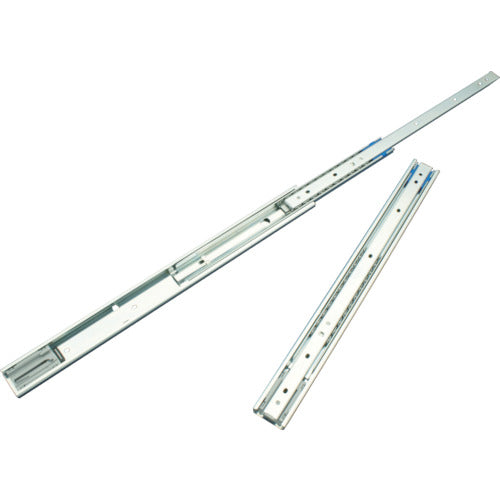

Accuride Self-closing Slide Rail 350mm C3273-35SC 1 piece

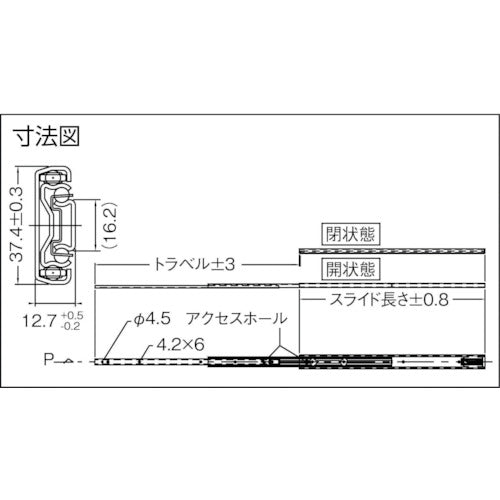

Catalogue number: C3273-35SC Features: ●Slide rail with self-closing mechanism using a spring. ●Equipped with a self-closing mechanism that closes the drawer completely without having to push it all the way in. ●The drawer starts retracting 20mm before it is completely closed. ●The self-closing mechanism provides simple retention when fully closed. ●Unlike the type with a built-in damper, the use of a torsion spring makes the closing and opening of the drawer smooth and stress-free. ●A full-travel slide rail that allows the drawer members to be pulled out completely. ●Overall length ranges from a minimum of 300mm to a maximum of 500mm. Applications: ●Drawers for housing facilities, factory equipment, machinery, etc. ●Computers●Steel furniture cabinets etc.●Home appliances Specifications:●Width (mm): 12.7●Height (mm): 37.4●Length (mm): 350●Travel distance (mm): 355●Rated load (N) pair/vertical: 255●For light loads●3-member full travel type●Drawer members can be detached●Mounting screws: Binding screws (M4)●Maximum retraction load: 15kgf (147N)/pair●Retraction distance is 25mm●Silencer mechanism when fully open/closed●Locks when fully open. To close, press the disconnect spring to release. Material/Finish:●Steel (SPCC)●Surface treatment: Trivalent chromium plating finish Note:●When used horizontally, the rated load is 1/4 of the indicated value.
