Accuride Self-closing Slide Rail 450mm C3271-45SC 1 piece

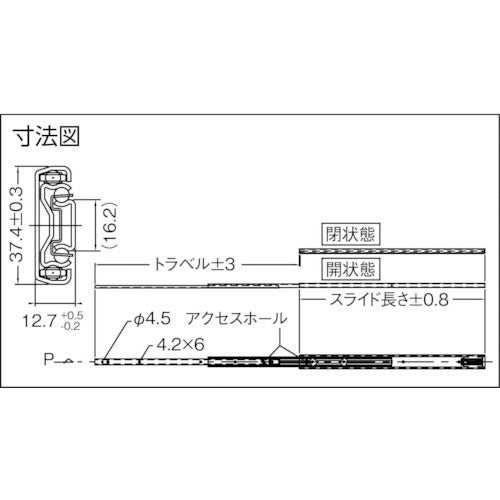

Catalogue number: C3271-45SC Features: ● Equipped with a self-closing mechanism that closes the drawer completely without the need to push it all the way in. ● The drawer starts retracting 20mm before it is completely closed. ● Unlike the type with a built-in damper, it uses a torsion spring, so the operation of closing and opening the drawer is smooth and stress-free. ● Total length ranges from a minimum of 300mm to a maximum of 500mm. ● A slide rail with a self-closing mechanism that uses a spring. ● The self-closing mechanism provides simple retention when fully closed. Applications: ● Drawers for housing facilities, factory equipment, machinery, etc. ●Computers ●Steel furniture cabinets etc. ●Home appliances Specifications: ●Width (mm): 12.7 ●Height (mm): 37.4 ●Length (mm): 450 ●Travel distance (mm): 474 ●Rated load (N) pair/vertical: 245 ●For light loads ●3-member full travel type ●Drawer members cannot be removed ●Mounting screws: Bind screws (M4) ●Maximum retraction load: 15kgf (147N)/pair ●Silent stop type Material/Finish: ●Steel (SPCC) ●Surface treatment: Trivalent chromium plating finish Note: ●When used horizontally, the rated load is 1/4 of the indicated load.
