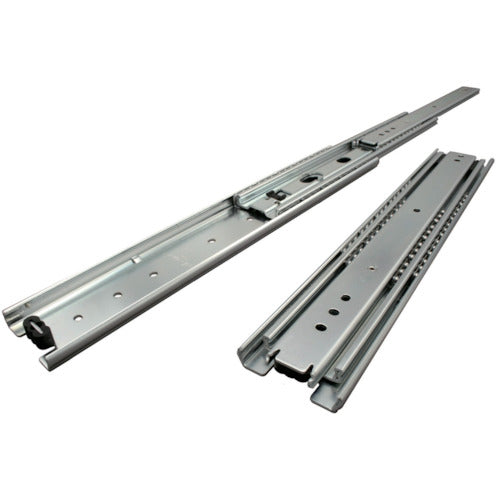

Accuride Double Slide Rail 304.8mm C3303-12 1 piece

Catalog number: C3303-12 Features: *Precision slide rail with ball bearings. *Reduces metallic noise when fully opened and closed. *Easy to hold when fully closed. Applications: *Computers, copiers, measuring instruments, home appliances, steel furniture, etc. Specifications: Width (mm): 12.7 Height (mm): 51.5 Length (mm): 304.8 Travel distance (mm): 330 Rated load (N) pair/vertical: 686 Travel (mm): 330 Slide length (mm): 304.8 Rated load (Kgf/pair): 70 For medium loads 3-member full travel type Drawer members can be detached Silent type Lock-free type when fully open Material/Finish: Slide rail body: Steel (SPCC) Ball retainer: Electrogalvanized steel plate (SECC) Ball bearing: Carbon steel ball Surface treatment: Trivalent chromium plating Note: When used horizontally, the rated load is 1/4 or less of the indicated value. Price is for one piece.
