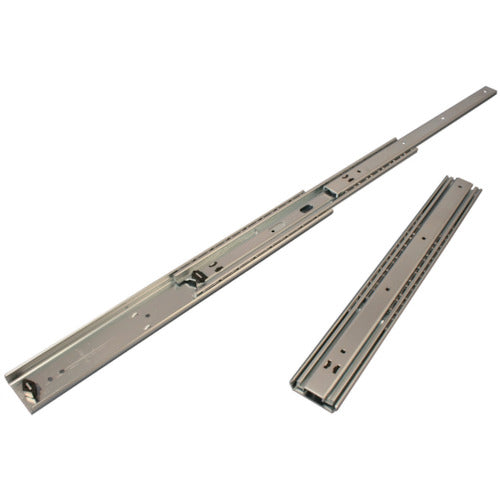

Accuride Double Slide Rail 457.2mm C3401-18 1 piece

Catalog number: C3401-18 Features: ●This slide rail uses ball bearings and is equipped with a sequential mechanism to achieve ideal center of gravity movement. ●Reduces metallic noise when fully open and closed. ●Simple retention when fully closed. Applications: ●Computers, copy machines, measuring instruments, home appliances, steel furniture, etc. Specifications: ●Width (mm): 16.0 ●Height (mm): 51.9 ●Length (mm): 457.2 ●Travel distance (mm): 483 ●Rated load (N) pair/vertical: 1000 ●Travel (mm): 483 ●Slide length (mm): 457.2 ●For heavy loads ●3-member full travel type ●Drawer members cannot be removed ●Silent stop type ●Mounting screws: Bind screws (M4) or truss machine screws (M4) Material/Finish: ●Steel (SPCC) ●Surface treatment: Trivalent chromium plating finish Note: ●When used horizontally, the rated load is 1/4 of the indicated value.
