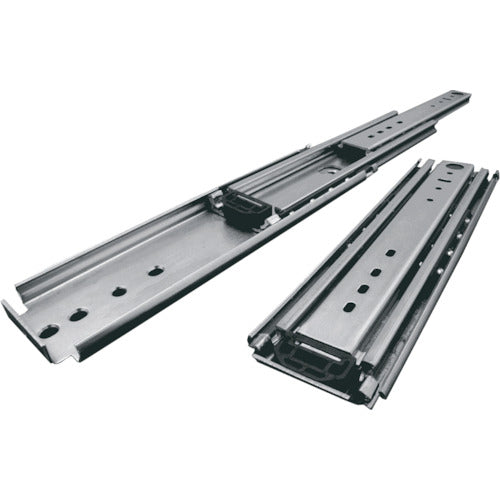

Accuride Double Slide Rail 457.2mm C9301-18B 1 piece

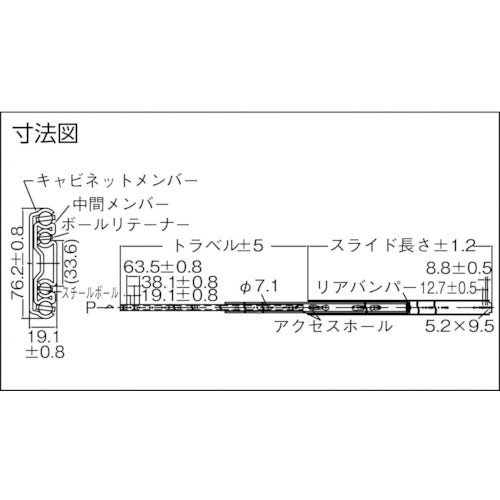

Catalog number: C9301-18B Features: *Precision slide rail with ball bearings. *Full-travel slide rail that allows the drawer member to be pulled out completely. *Overall length ranges from a minimum of 12 inches (304.8 mm) to a maximum of 60 inches (1524 mm). *Only the outer member can be fixed with the carriage bolt. (When using a carriage, use 1/4” (M6 Euro) to fix it in place.) Applications: ● Drawers for factory equipment and machinery. ● Computers, copiers, measuring instruments, home appliances, steel furniture, etc. Specifications: ● Width (mm): 19.1 ● Height (mm): 76.2 ● Length (mm): 457.2 ● Travel distance (mm): 457 ● Rated load (N) pair/vertical: 2206 ● For heavy loads ● 3-member full travel type ● Drawer members cannot be removed ● Mounting screws: M5, M6 machine screws (depending on hole diameter used) ● Silencer stop type Material/Finish: ● Steel (SPCC) ● Surface treatment: Trivalent chromium plating finish Note: ● When used horizontally, the rated load is 1/4 of the indicated load. ● The price is for one piece, not 1 set = 2 pieces.
