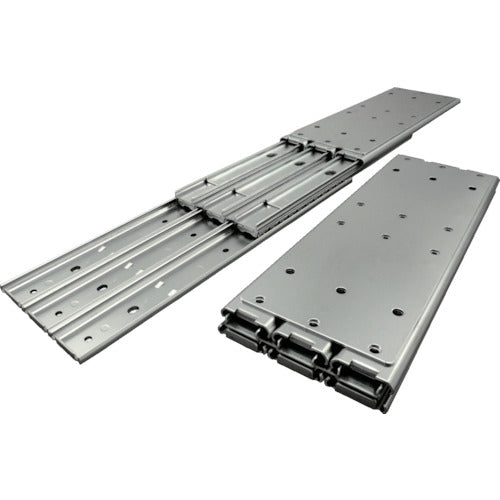

Accuride Double Slide Rail 609.6mm C530-24 1 piece

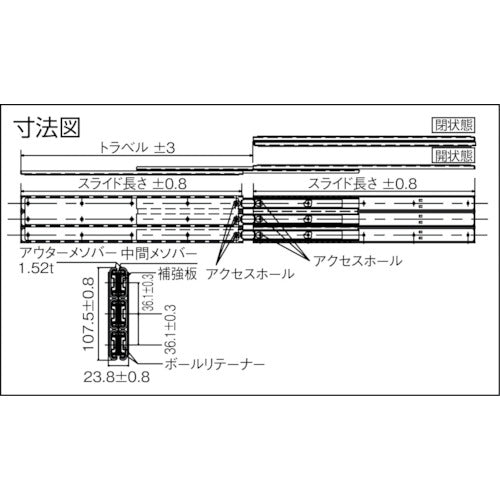

Catalog number: C530-24 Features: *Full-travel slide rail that allows drawer members to be pulled out completely. *Overall length varies from a minimum of 12 inches (304.8 mm) to a maximum of 28 inches (711.2 mm). *Precision slide rail that uses ball bearings. *Stop type that cannot be pulled out when fully open. Applications: *Drawers for factory equipment, machinery, etc. *Computers, copiers, measuring instruments, home appliances, steel furniture, etc. ●For heavy loads Specifications: ●Width (mm): 23.8 ●Height (mm): 107.5 ●Length (mm): 609.6 ●Travel distance (mm): 632 ●Rated load (N) pair/vertical: 3246 ●Travel (mm): 632 ●Slide length (mm): 609.6 ●For heavy loads ●3-member full travel type ●Drawer members cannot be removed ●Mounting screws: Bind (M4) or truss small screws (M4) ●Stop type Material/Finish: ●Steel (SPCC) ●Surface treatment: Trivalent chromium plating finish Note: ●When used horizontally, the rated load is 1/4 of the indicated load.
