日本アキュライド(株)

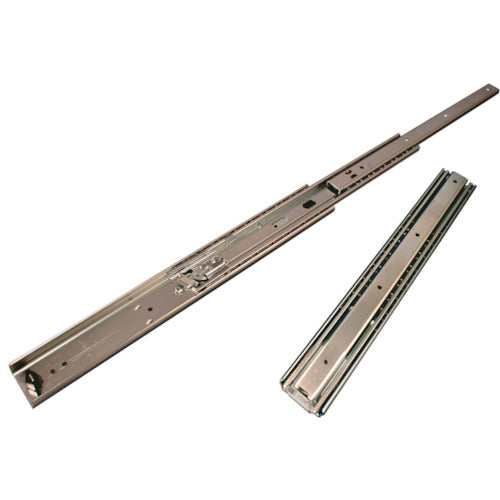

Accuride Double Slide Rail 660.4mm C3407-26 1 piece
Accuride Double Slide Rail 660.4mm C3407-26 1 piece
Regular price
¥15,998
Regular price
Sale price
¥15,998
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: C3407-26 Features: ●Locks when fully open. To close, pull up the disconnect lever to release. ●Full-travel slide rail that allows drawer members to be pulled out completely. Applications: ●Computers, copiers, measuring instruments, home appliances, steel furniture, etc. Specifications: ●Width (mm): 16.0 ●Height (mm): 51.9 ●Length (mm): 660.4 ●Travel distance (mm): 686 ●Rated load (N) pair/vertical: 920 ●Travel (mm): 686 ●Slide length (mm): 660.4 ●For heavy loads ●3-member full-travel type ●Drawer members can be removed ●Lock type ●Mounting screws: Bind screws (M4) or truss machine screws (M4) Material/Finish: ●Steel (SPCC) ●Surface treatment: Trivalent chromium plating finish Note: ●When used horizontally, the rated load is 1/4 of the indicated value.
