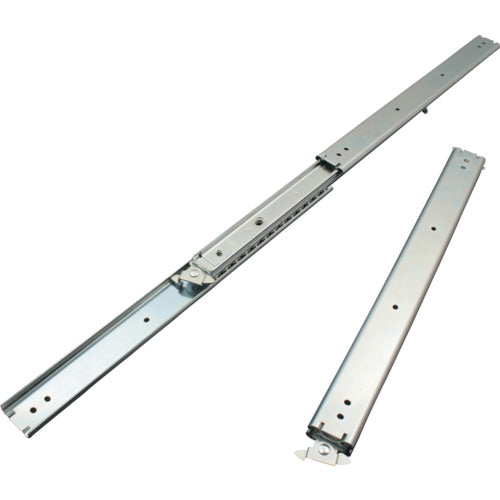

Accuride Front Rear Travel Slide Rail Length 660.4mm C301-26TW 1 piece

Catalog number: C301-26TW Features: ●Full travel sliding is possible in both directions. ●Full travel slide rail that allows the drawer member to be completely pulled out. Applications: ●Drawers for tool boxes, factory equipment, machines, etc. Specifications: ●Width (mm): 20.7 ●Height (mm): 35.3 ●Length (mm): 660.4 ●Travel distance (mm): 674 ●Rated load (N) pair/vertical: 471 ●Type: Medium load ●For medium load ●3 members full travel in both directions ●Drawer members cannot be removed ●Mounting screws: Bind (M4) or truss machine screw (M4) ●Stop type ●The travel distance below is for one side, and the same amount of travel is possible in the opposite direction. Material/Finish: ●Steel (SPCC) ●Surface treatment: Trivalent chromium plating finish Note: ●The total length of the slide rail dimensions does not include the front and rear latches (each 18 mm). ●When used horizontally, the rated load is 1/4 of the indicated value.
