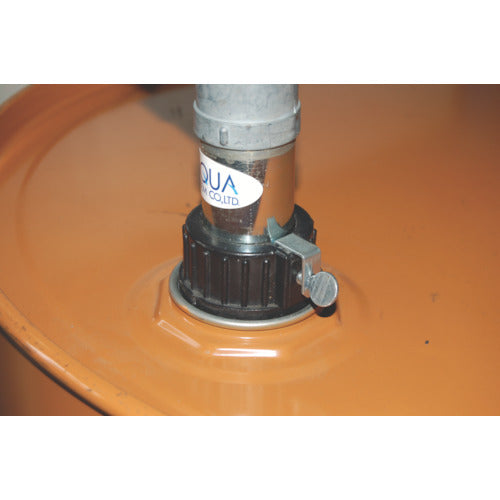

Catalog number: S-LH-1 Features: ● Discharges when handle is pulled up. ● Can be used with high viscosities up to 10,000 cP. ● Comes with a hose and valve to prevent leakage. ● Can be used with siphon function. Applications: ● For oil. (High viscosity compatible) ● When dividing high viscosity oil from a drum. Specifications: ● Total length (mm): 1100 ● Lift (m): 2 ● Hose length (mm): 1 ● Usable liquid: Oil ● Usable viscosity (［［MM2］］/s): 10,000 ● Compatible drum: 200L closed drum ● Discharge volume (cc/stroke): 600 ● Hose: 19A x 1m ● Usable viscosity: 10,000 cP or less (ideal for high viscosity oil) ● Hose can be extended Materials/Finish: ● Body: Steel ● Hose: Oil-resistant polyvinyl chloride (PVC) ● Gasket: Nylon Caution: ● Do not use with gasoline.
