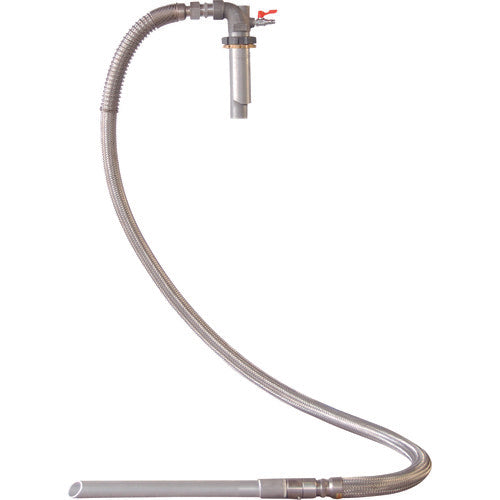

Aqua System Air-operated drum pump for suction only Solvents Chemicals Recovery APDQ1-25AS 1 unit

Catalogue number: APDQ1-25AS Features: ● Safely sucks up volatile and flammable liquids. ● Can be used continuously without contamination by foreign objects. ● Motorless, so there are few breakdowns and the flow path is unobstructed, so even small foreign objects can be collected. ● Uses an ejector to create negative pressure inside the can and suck up the liquid. Applications: ● For collecting cutting fluid and machine oil from machine tools, etc. ● For collecting sludge from wastewater treatment layers. ● For collecting oil from vehicles (vehicles and heavy machinery). Specifications: ● Intake volume (L/min): 50 ● Overall length (mm): 276.5 ● Head (m): 2 ● Nozzle type: Ball valve ● Usable liquid: Solvent ● Hose material (length m x inner diameter mm): SUS304 (2 x 25) ● Usable viscosity (cP): 3000 ● Type: For suction only ● Air connection port: Rc1/4 (with plug) ● Compressor used: 3 horsepower and over ● Air pressure used: 0.4 to 0.6 MPa Material/Finish: ● Body: AL/SUS/CAC ● Gasket: PTFE/FKM/FFKM/EPDM
