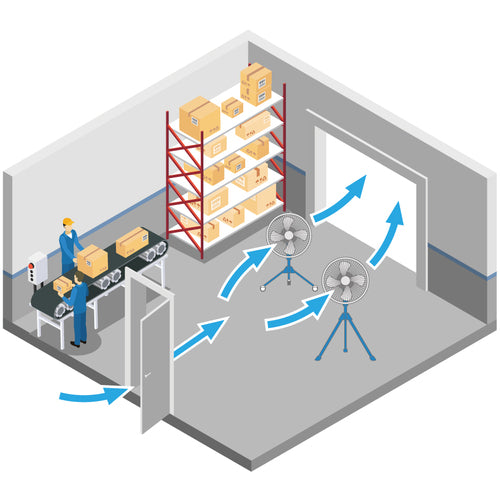

Catalogue number: AFG-24NL Features: ● Equipped with an oil-free air motor, so no need for oil lubrication with a lubricator, etc. ● Uses a long-life motor that can operate continuously. ● Driven by air, it can be used in explosion-proof areas. ● Can be used in high temperature and humidity. ● Can be used in areas where open flames are prohibited. ● A mist fan can be installed as an option. Applications: ● For cooling, ventilation, and drying in work sites where oil is undesirable, such as paint booths. ● To prevent heatstroke. ● Particularly for use in explosion-proof or flammable areas. ● For air circulation and ventilation. ●For heat stroke prevention Specifications: ●Blade diameter (cm): 60 ●Width (mm): 870 ●Depth (mm): 753 ●Height (mm): 1365 ●Compressor output (horsepower): 5 ●Air pressure used (MPa): 0.4-0.6 ●Air consumption (m3/min): 0.46 ●Blade material: Aluminum ●Swing: Yes ●Air volume adjustment: Stepless by squeezing ●Air volume (m3/min): 280 ●Rotation speed (rpm): 1,000 ●Blades: 4 (aluminum) ●Swing function ●Angle adjustable ●Up and down movement angle: 4 steps (40°) ●Wind speed: 250m/min ●Air consumption: 460L/min ●Noise level: 73db Material/Finish: ●Blades: Aluminum ●Body: Steel Note: ●Since it does not use electricity, it can be used in explosion-proof areas where open flames are strictly prohibited. Please check with the site manager regarding use.
