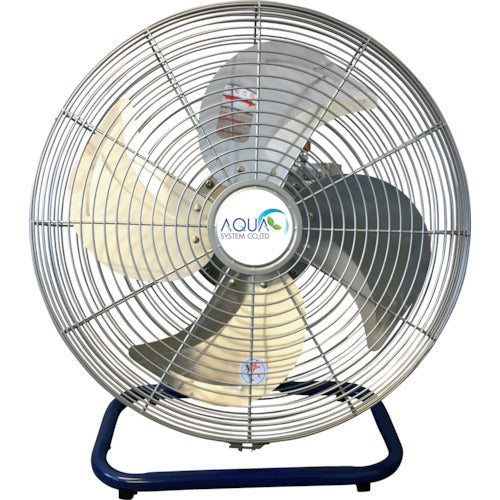

Aqua System Oil-free air motor type industrial fan, tabletop type (aluminum blade 45 cm) AFD-18NL 1 unit
Aqua System Oil-free air motor type industrial fan, tabletop type (aluminum blade 45 cm) AFD-18NL 1 unit
Regular price
¥115,782
Regular price
Sale price
¥115,782
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: AFD-18NL Features: ● Equipped with an oil-free air motor, no need for oil lubrication with a lubricator, etc. ● Uses a long-life air motor that can operate continuously. ● The air hose can be easily operated with one touch. Just open the valve and it's ready to use. ● Lightweight and compact, it can be easily placed on a desk or pedestal. ● Stable construction means it won't easily tip over. ● Can be used in high temperature and humidity. Applications: ● For cooling, ventilation, and drying in places where oil is undesirable, such as paint booths. ● To prevent heatstroke. ● Particularly for use in explosion-proof or flammable areas. ● For air circulation and ventilation. Specifications: ●Blade diameter (cm): 45 ●Width (mm): 445 ●Depth (mm): 318 ●Height (mm): 586 ●Air supply compressor output (horsepower): 3 ●Compressor output (horsepower): 3 ●Air pressure used (MPa): 0.4-0.6 ●Air consumption (m3/min): 0.33 ●Installation type: Tabletop ●Blade material: Aluminum ●Oscillation: Yes ●Airflow adjustment: Stepless by squeezing ●Airflow (m3/min): 250 ●Color: Silver ●Rotation speed (rpm): 1800 ●Maximum airflow (m3/min): 250 ●Blades: 4 (aluminum) ●Oscillation function ●Angle adjustable ●Up and down movement angle: 4 levels (40°) ●Supply air connection part: 20PM ●Hose mounting port: Rc1/4 Material/Finish: ●Blades: Aluminum ●Stand, guard: Iron Note: ●As it does not use electricity, it can be used in explosion-proof areas where open flames are strictly prohibited. Please check with the site manager regarding its use.
