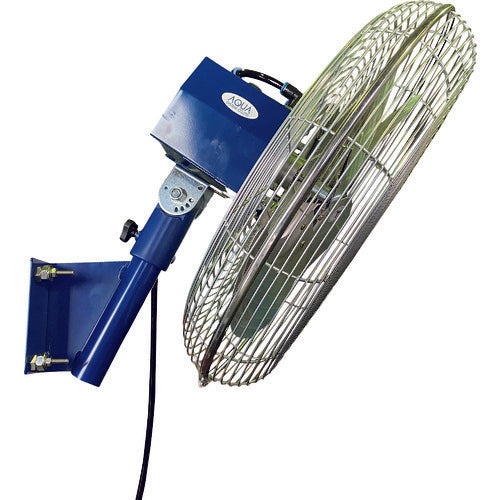

Aqua System Oil-free air motor type industrial fan, wall-mounted type (aluminum blade 45 cm) AFK-18NL 1 unit

Catalog number: AFK-18NL Features: ● Equipped with an oil-free air motor, no need for oil lubrication with a lubricator, etc. ● Uses a long-life air motor that can operate continuously. ● Since it uses air pressure as its power source, it can be used safely even in environments where there is a risk of ignition or explosion. ● Can be used in high temperature and humidity. ● Aluminum blades are standard, making it resistant to heat. ● It can be fixed to a wall or pillar, so you don't have to worry about where to place it. ● It can be used immediately by opening the valve. ● The air hose can be easily operated with one touch. Applications: ● For cooling, blowing, and drying in sites where oil is undesirable, such as paint booths. ● For heatstroke prevention. ● Especially for use in explosion-proof and ignition-prone areas. ● For air circulation and ventilation. Specifications: ●Blade diameter (cm): 45 ●Width (mm): 512 ●Depth (mm): 317 ●Height (mm): 610 ●Air supply compressor output (horsepower): 3 ●Compressor output (horsepower): 3 ●Air pressure used (MPa): 0.4 to 0.6 ●Air consumption (m3/min): 0.33 ●Installation type: Wall-mounted ●Blade material: Aluminum ●Swing: 70° left and right ●Air volume adjustment: Stepless by squeezing ●Air volume (m3/min): 250 ●Color: Silver ●Rotation speed (rpm): 1800 ●Compressor output (kW): 2.2 ●Maximum air volume (m3/min): 250 ●Blades: 4 (aluminum) ●Swing function ●Angle adjustable ●Up and down movement angle: 7 levels (68°) ●Supply air connection part: 20PM ●Air filter standard equipment Material/Finish: ●Blade: Aluminum ●Body: Steel Caution: ●As it does not use electricity, it can be used in explosion-proof areas where open flames are strictly prohibited. Please check with the site manager regarding use.
