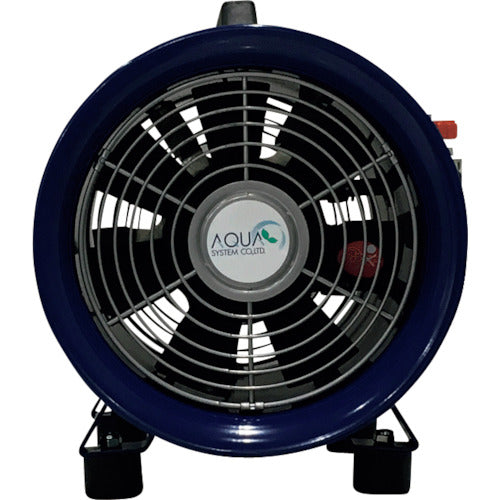

Aqua System Oil-free air motor type axial flow type blower (aluminum blade 20 cm) AFR-08NL 1 unit

Catalog number: AFR-08NL Features: ●Compressed air is used as the power source, so it can be used safely even in environments where there is a risk of fire or explosion. ●The air hose has a one-touch air coupler for easy operation. Simply open the valve and it is ready to use. ●The motor is compact, lightweight, and has a long life. ●The aluminum blades that come as standard are resistant to heat. In addition, they are less likely to cause sparks when colliding with foreign objects. Applications: ●Ventilation and air circulation in narrow spaces such as manholes and tanks. ●Exhaust gas from construction vehicles and heavy machinery. Specifications: ● Air volume (m3/min) 50Hz: 120 ● Noise level (dB(A)) 50/60Hz: 75 ● Blade diameter (mm): 200 ● Number of fan blades (pieces): 7 ● Width (mm): 273 ● Maximum rotation speed (rpm): 2500 ● Air connection: Nitto Kohki 20PM ● Air volume (m3/min): 120 ● Air consumption (m3/min): 0.35 ● External dimensions (mm) width: 297 ● Air pressure used (MPa): 0.4-0.6 ● External dimensions (mm) height: 312 ● External dimensions (mm) depth: 337 ● Compressor output (horsepower): 5 ● Air volume adjustment: Stepless by throttling ● Uses an oil-free air motor (NL type) Caution: ● For use in explosion-proof areas, follow the instructions of the local fire department.
