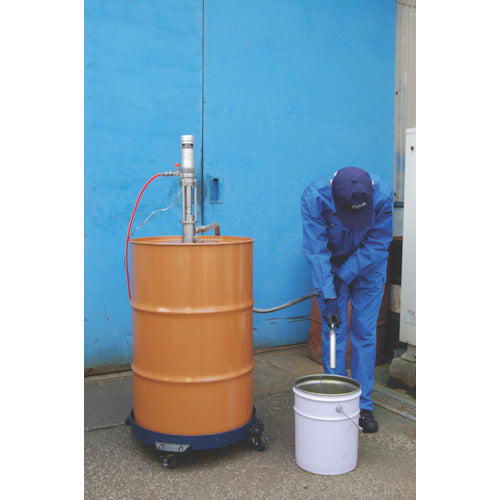

Aqua System Air piston type drum pump for high viscosity oil PST-20G 1 unit

Catalog number: PST-20G Features: ●Air piston type drum pump for high viscosity. ●Can pump liquids to high places and long distances. ●Uses air pressure for power, so it can be used safely even in environments where there is a risk of fire or explosion. ●Can be used without sealing the drum. Applications: ●High viscosity oil. (20,000 cP or less) ●When you want to divide high viscosity liquids from a drum to high places and long distances. Specifications: ●Discharge volume (L/min): 15 (at 1cP/L/min) ●Total length (mm): 1315 ●Head (m): 50 ●Air pressure (MPa): 0.3-0.8 ●Nozzle type: Ball valve ●Usable liquid: Oil ●Air connection port: Air coupler plug (male) ●Hose: 20A x 2000mm ●Compressor capacity: 3 horsepower or more (2.25kW) ●For discharge only ●Earth wire with magnet included ●Hose can be extended ●Usable viscosity: 20,000cP Materials/Finish: ●Body/Nozzle: AL/Iron/Bs/SUS ●Hose: Oil-resistant rubber ●Packing: FKM/PTFE/Leather Caution: ●Since the discharge is pulsating, flow meters and gun nozzles cannot be attached. ●Be sure to use an air filter and lubricator.
