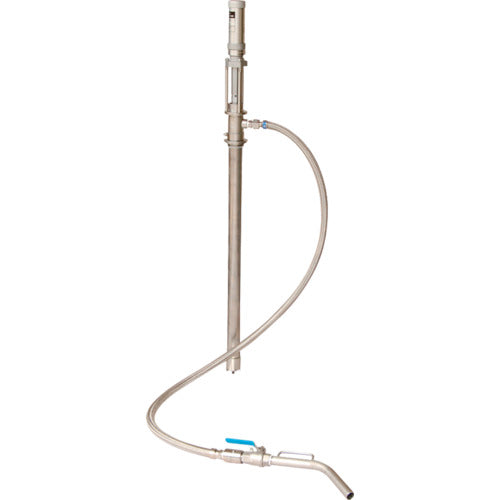

AQUA SYSTEM Air piston type drum pump for high viscosity solvents and chemicals PST-20SUS 1 unit

Catalogue number: PST-20SUS Features: ●Air piston type drum pump for high viscosity. ●Can pump liquids to high places and long distances. ●Uses air pressure for power, so it can be used safely even in environments where there is a risk of fire or explosion. ●Can be used without sealing the drum. Applications: ●Organic solvents, acids, alkalis, paints. ●When you want to divide high viscosity solvents from a drum to high places and long distances. Specifications: ●Discharge volume (L/min): 15 ●Total length (mm): 1315 ●Head (m): 50 ●Air pressure (MPa): 0.3-0.8 ●Nozzle type: Ball valve nozzle ●Usable liquid: Solvent ●Usable viscosity (［［MM2］］/s): 20000 ●Liquid contact material: SUS ●Material discharge port: SUS ●Air connection port: Air coupler plug (male) ●Hose (mm): 20A x 2000 ●Compressor capacity: 3 horsepower or more (2.25kW) ●For discharge only ●Earth wire with magnet included Material/Finish: ●Body: Stainless steel (SUS303, SUS304, SUS316) ●Hose: Stainless steel (SUS304) ●Packing: FKM/PTFE/PE Caution: ●Gasoline cannot be used. ●Since it discharges in a pulsating manner, flow meters and gun nozzles cannot be attached. ●Be sure to use an air filter and lubricator.
