Aspirator GAS-1N 1 piece
Aspirator GAS-1N 1 piece
Regular price
¥74,690
Regular price
Sale price
¥74,690
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

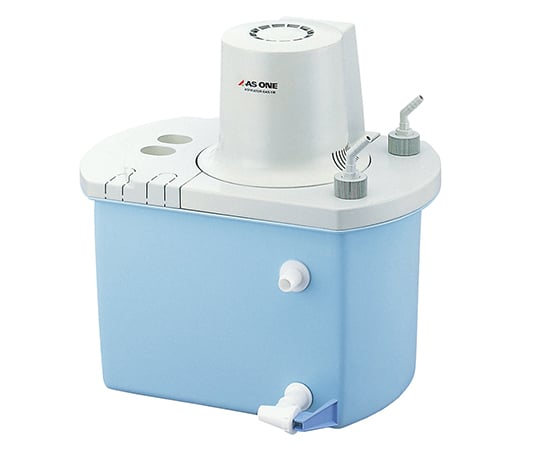

It is self-priming and can be easily reduced pressure by simply switching it on.
A metal aspirator is used, ensuring stable exhaust volume.
The aspirator tube ball valve uses a ceramic ball, providing excellent chemical resistance and durability.
It comes with a drain cock, making it easy to drain.

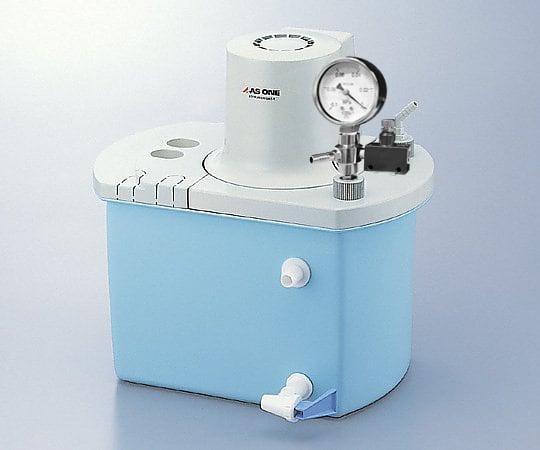

The vacuum level can be adjusted by using the optional pressure reducing valve with vacuum gauge. Size (mm): 360 x 272 x 355
Displacement: 50Hz/18L/min, 60Hz/22L/min
Motor: 150W
Aspirator: Metal x 2
Tank capacity: Approx. 10L
Tank material: PP (polypropylene)
Suction port diameter: Φ9.5mm x 2
Water supply and drainage: Overflow/water supply and drainage cock Φ17mm
Safety devices: Backflow prevention valve, overcurrent fuse, thermal protector to prevent overheating
Power supply: AC100V 50/60Hz 3A
Weight: Approx. 6kg
Vacuum level reached *Reference value (water temperature/kPa/mmHg)
10℃/1.33/10
20℃/2.67/20
30℃/4.27/32
40℃/7.20/54
