Anest Iwata spray gun (pressure feed type) Large pressure feed type low pressure spray gun for automobile line painting Φ1.2 Air intake port G1/4 LPH-200-122H 1 unit

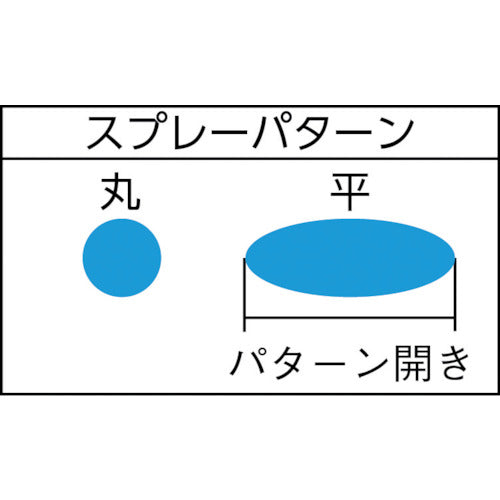

Catalog number: LPH-200-122H Features: ● Nozzle and needle are hardened. ● High coating efficiency and low scattering allow for reduced paint usage. ● Little scattering or rebound of paint mist helps improve the painting environment. Applications: ● For painting automobiles (metal), woodworking, furniture, and plastics. Specifications: ● Nozzle diameter (mm): 1.2 ● Required compressor (kW): 2.2-3.7 ● Air consumption (L/min): 500 ● Pattern opening (mm): 300 ● Atomization stage: Highly fine ● Air attachment port: G1/4 ● Pressure-fed type ● Paint hose attachment port: G3/8 ● Air intake port: G1/4 Material/Finish: ● Body: Aluminum die-cast ● Liquid contact parts: Stainless steel
