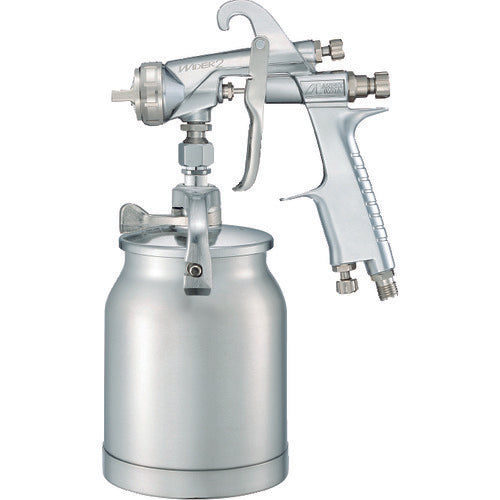

Anest Iwata Large spray gun (suction type) Nozzle diameter Φ2.0 Pattern opening 290mm WIDER2-20R2S 1 unit

Catalogue number: WIDER2-20R2S Features: ● Ergonomic design with emphasis on functionality. ● Model change allows for easier maintenance. ● Linearly responsive pattern adjustment device, air valve seat set with little individual variation. Applications: ● For woodworking, furniture, metal. ● For medium viscosity paints. Specifications: ● Nozzle diameter (mm): 2.0 ● Required compressor (kW): 1.5-2.2 ● Air consumption (L/min): 360 ● Pattern opening (mm): 290 ● Atomization stage: Highly fine ● Air attachment port: G1/4 ● Cup attachment port: G3/8 ● Suction type Materials/Finish: ● Body: Aluminum die-cast ● Connection: Stainless steel
