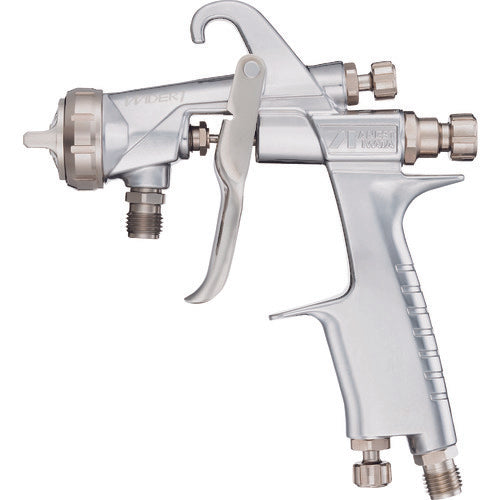

Anest Iwata Small spray gun (pressure type) Nozzle diameter Φ1.3 WIDER1-13E2P 1 unit

Catalog number: WIDER1-13E2P Features: ●Ergonomic design with emphasis on functionality. ●Model change allows for easy maintenance. ●Linearly responsive pattern adjustment device, air valve seat set with little individual variation has been achieved. Applications: ●For automobiles, woodworking/furniture, metal, plastic. ●For medium viscosity paints Specifications: ●Nozzle diameter (mm): 1.3 ●Required compressor (kW): 1.5-2.2 ●Air consumption (L/min): 220 ●Pattern opening (mm): 210 ●Atomization stage: Highly fine ●Air attachment port: G1/4 ●Cup attachment port: G1/4 ●Spraying distance (mm): 200 ●Spraying air pressure (MPa): 0.24 ●Paint supply method: Pressure feed ●Paint spray volume (ml/min): 200 ●Pressure feed type Material/Finish: ●Body: Aluminum die-casting ●Wetted parts: Stainless steel
