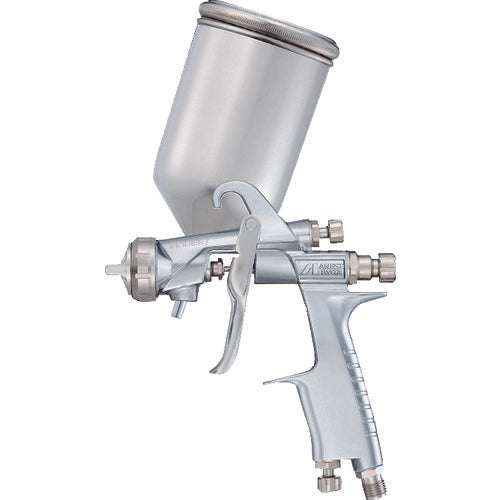

Anest Iwata Small spray gun (gravity type) Nozzle diameter Φ1.3 Air consumption 225L/min WIDER1-13H2G 1 unit

Catalog number: WIDER1-13H2G Features: ●Ergonomic design with emphasis on functionality. ●Model change allows for easy maintenance. ●Linearly responsive pattern adjustment device and air valve seat set with little individual variation have been achieved. Applications: ●For light industry and hobbies. Specifications: ●Nozzle diameter (mm): 1.3 ●Required compressor (kW): 1.5-2.2 ●Air consumption (L/min): 225 ●Pattern opening (mm): 175 ●Atomization stage: Highly fine ●Air attachment port: G1/4 ●Cup attachment port: G1/4 ●Spray distance (mm): 200 ●Spray air pressure (MPa): 0.24 ●Paint supply method: Gravity ●Paint spray volume (ml/min): 175 ●Gravity type ●Air intake port: G1/4 Material/Finish: ●Main body: Aluminum die-cast ●Wetted parts: Stainless steel
