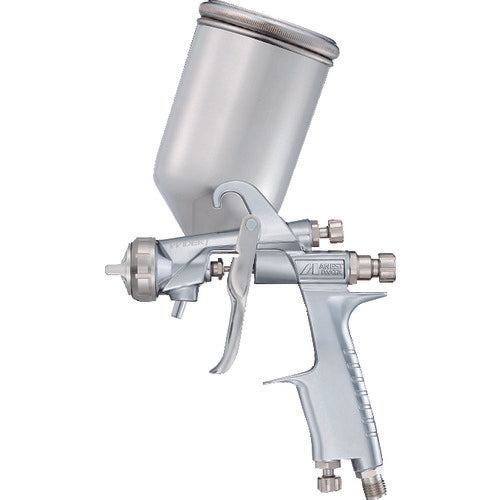

Anest Iwata Small spray gun (gravity type) Nozzle diameter Φ1.8 Air consumption 170L/min WIDER1-18N1G 1 unit

Catalog number: WIDER1-18N1G Features: ●Ergonomic design with emphasis on functionality. ●Easy maintenance is now possible due to the model change. ●Linearly responsive pattern adjustment device and air valve seat set with little individual variation have been realized. Applications: ●For light industry and hobbies. Specifications: ●Nozzle diameter (mm): 1.8 ●Required compressor (kW): 1.5-2.2 ●Air consumption (L/min): 170 ●Pattern opening (mm): 190 ●Atomization stage: General purpose ●Air attachment port: G1/4 ●Cup attachment port: G1/4 ●Spray distance (mm): 200 ●Spray air pressure (MPa): 0.24 ●Paint supply method: Gravity ●Paint spray volume (ml/min): 240 ●Gravity type ●Air intake port: G1/4 Material/Finish: ●Main body: Aluminum die-cast ●Wetted parts: Stainless steel
