Anest Iwata Automatic liquid application spray gun (large) Atomization air separation type Nozzle diameter Φ2.0 TOF-30-20 1 unit

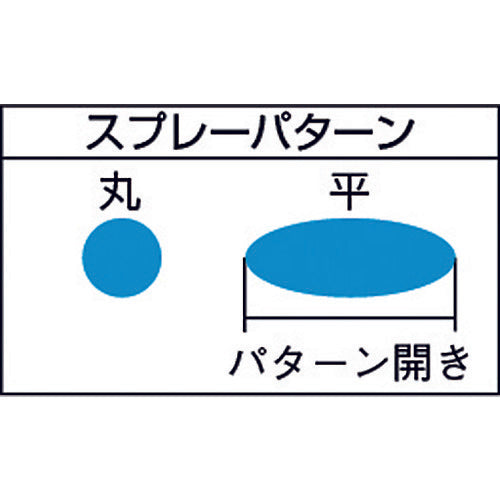

Catalog number: TOF-30-20 Features: ● Equipped with pattern adjustment function. ● Wide pattern spraying is possible. ● Piston operation and atomization air circuit can be separated and controlled individually. ● For applying high viscosity liquids. Applications: ● For applying high viscosity liquids and large patterns. Specifications: ● Nozzle diameter (mm): 2 ● Mounting port (air/liquid): G1/4 ● Liquid spray volume (ml/min): 0-700 ● Air consumption (L/min): 190 ● Pattern opening (mm): 500 ● Spray pattern: Round and flat spray ● Width (mm): 81 ● Uses two air hoses Material/Finish: ● Body: Aluminum ● Nozzle/Needle: Stainless steel (SUS303) ● Needle: Stainless steel (SUS303) Note: ● Particle size is not listed because it varies greatly depending on the fluid. ● Maximum pattern opening is calculated at a spray distance of 30 cm.
