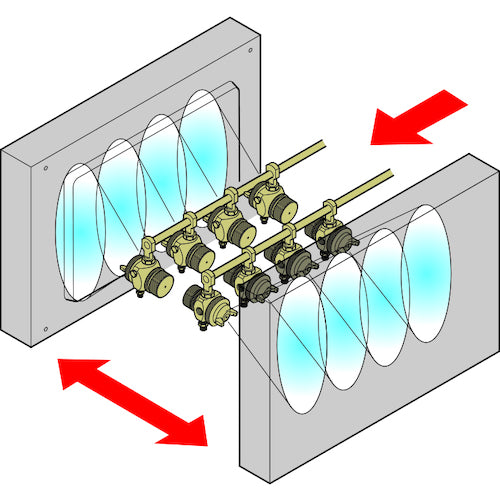

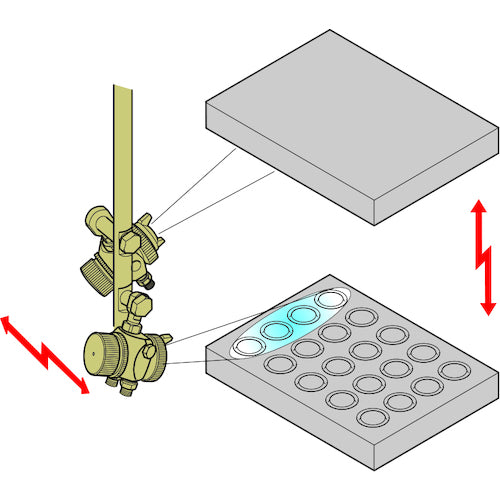

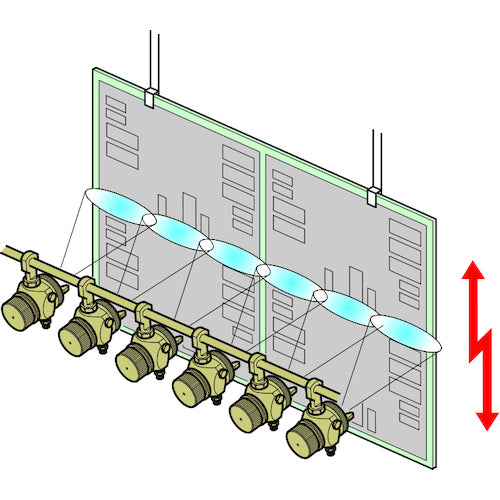

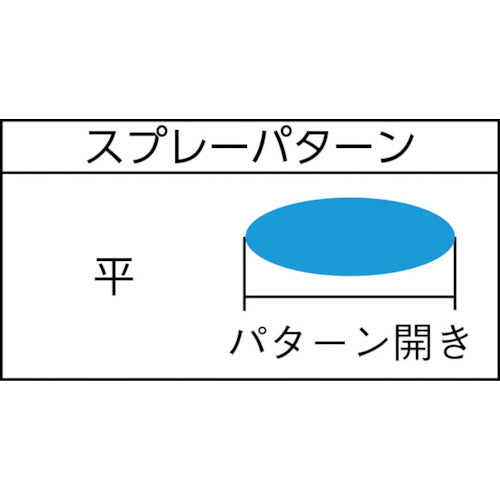

Catalog number: TOF-6B-13 Features: ●With pattern adjustment function. ●For applying low viscosity liquids such as release agents and rust inhibitors. ●The piston operation and atomizing air circuit can be separated and controlled individually. Applications: ●For applying low viscosity liquids such as release agents and rust inhibitors. Specifications: ●Nozzle diameter (mm): 1.3 ●Mounting port (air/liquid): G1/8 ●Liquid spray volume (ml/min): 0-360 ●Pattern opening (mm): 350 ●Uses two air hoses ●Release agent ●Mold coating agent ●Rust inhibitor Material/Finish: ●Body: Brass, plated ●Nozzle/Needle: Stainless steel (SUS303) Note: ●Particle size is not listed because it varies greatly depending on the fluid. ●Maximum pattern opening is calculated at a spray distance of 30 cm. ●A two-way solenoid valve is required for the atomizing air circuit.
