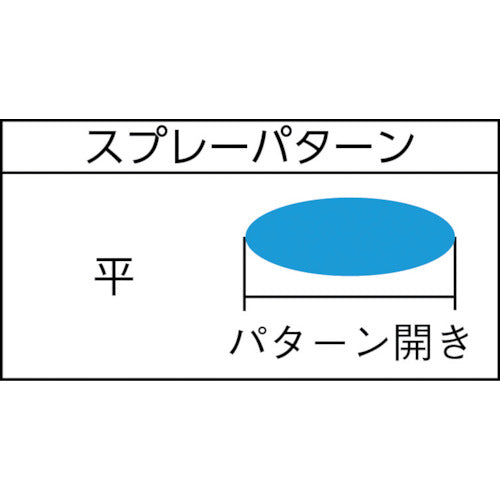

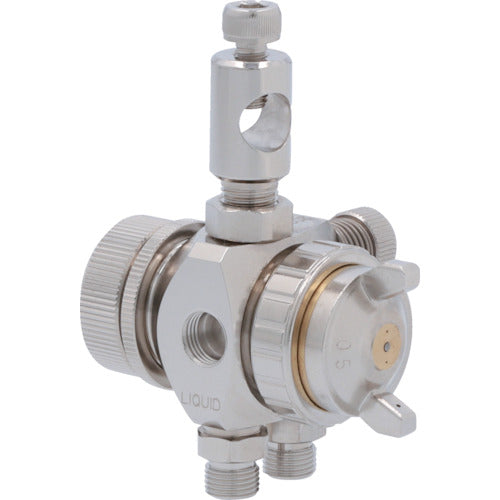

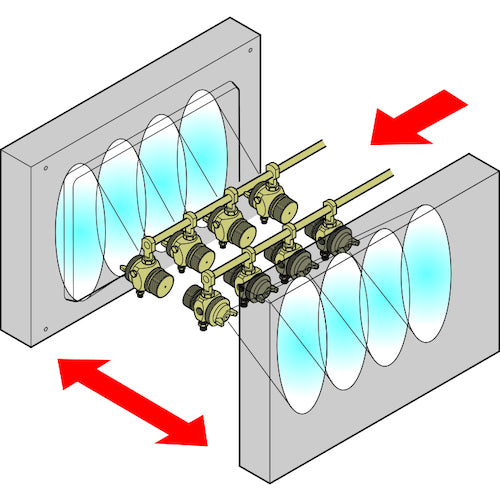

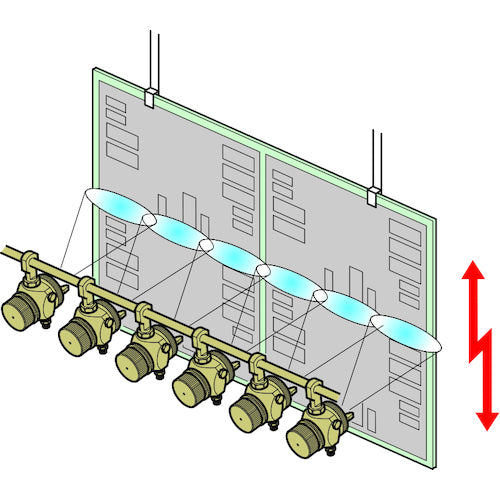

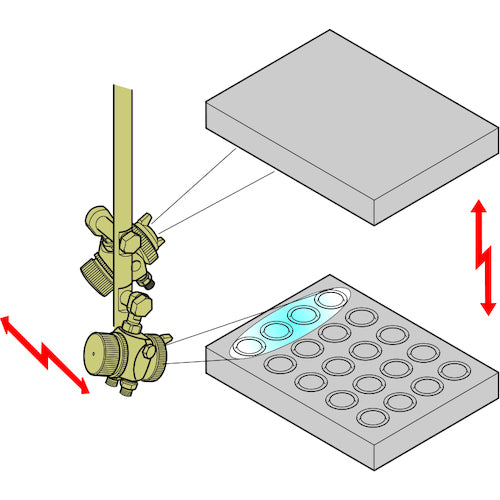

Catalog number: TOF-5B-10 Features: ● Equipped with pattern adjustment function. ● For applying low viscosity liquids such as release agents and rust inhibitors. ● Piston operation and atomization can be controlled with a single air circuit. Applications: ● For applying low viscosity liquids such as release agents and rust inhibitors. Specifications: ● Nozzle diameter (mm): 1 ● Mounting port (air/liquid): G1/8 ● Liquid spray volume (ml/min): 0-250 ● Air consumption (L/min): 80 ● Pattern opening (mm): 250 ● Spray pattern: Both round and flat spraying ● Width (mm): 49 ● Uses one air hose ● Release agent ● Coating agent ● Rust inhibitor Material/Finish: ● Body: Brass, plated ● Nozzle/Needle: Stainless steel (SUS303) Note: ● Particle size is not listed because it varies greatly depending on the fluid. ● Maximum pattern opening is calculated at a spray distance of 30 cm. ● Air pressure of 0.25 MPa or more is required.
