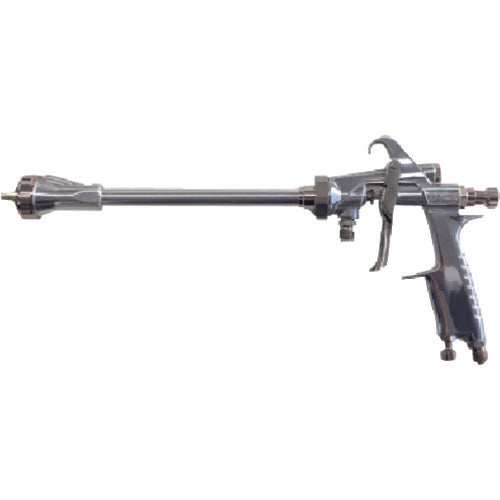

Anest Iwata Long neck gun Neck bending angle 0 degrees Nozzle diameter Φ1.0mm Neck length 150mm LW1-10E1-0015 1 unit

Catalog number: LW1-10E1-0015 Features: ● Ergonomic design with emphasis on functionality. ● Model change allows for easier maintenance. ● Linearly responsive pattern adjustment device and air valve seat set with few individual differences have been achieved. Applications: ● For painting hard-to-reach places and the inside of pipes. Specifications: ●Nozzle diameter (mm): 1.0 ●Required compressor (kW): 1.5-2.2 ●Air consumption (L/min): 90 ●Pattern opening (mm): 175 ●Atomization stage: General purpose ●Air attachment port: G1/4 ●Liquid hose attachment port: G1/4 ●Cap type: E1 ●Neck bending angle (°): 0 ●Cup attachment port: G1/4 ●Paint supply method: Pressure feed type ●Spray distance (mm): 200 ●Spray air pressure (MPa): 0.29 ●Neck length (mm): 150 ●Paint spray volume (ml/min): 150 Material/Finish: ●Body: Aluminum ●Liquid contact part: Stainless steel
