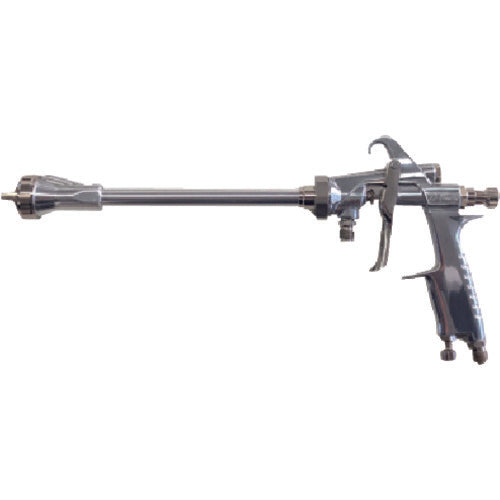

Anest Iwata Long neck gun Neck bend angle 45 degrees Nozzle diameter Φ1.0mm Neck length 500mm LW1-10E1-4550 1 unit

Catalog number: LW1-10E1-4550 Features: ●Ergonomic design with emphasis on functionality. ●Easy maintenance is now possible due to the model change. ●Linearly responsive pattern adjustment device and air valve seat set with little individual variation have been realized. Applications: ●For painting places that are difficult to reach and the inside of pipes. Specifications: ●Nozzle diameter (mm): 1.0 ●Required compressor (kW): 1.5-2.2 ●Air consumption (L/min): 90 ●Pattern opening (mm): 175 ●Atomization stage: General purpose ●Air attachment port: G1/4 ●Cap type: E1 ●Neck bending angle (°): 45 ●Cup attachment port: G1/4 ●Paint supply method: Pressure feed type ●Spray distance (mm): 200 ●Spray air pressure (MPa): 0.29 ●Neck length (mm): 500 ●Paint spray amount (ml/min): 150 Material/Finish: ●Body: Aluminum ●Wetted part: Stainless steel
