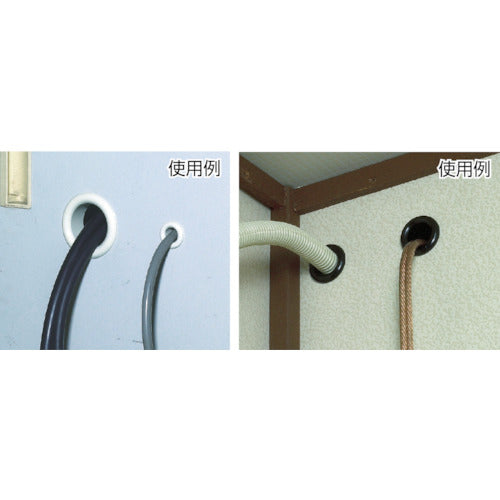

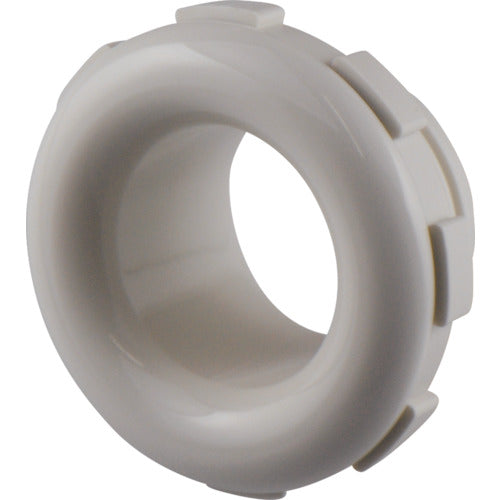

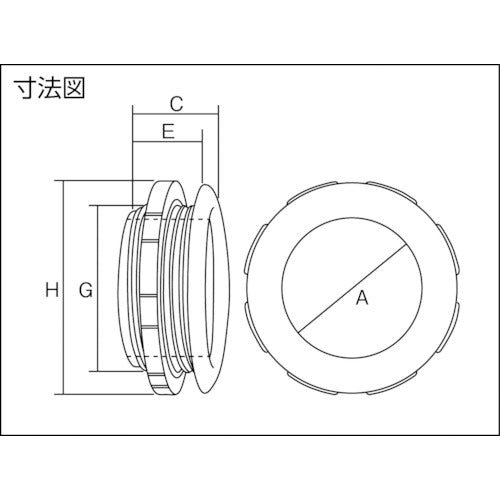

Catalog number: BN30S-IV Features: ● Made of nylon resin with excellent heat resistance, impact resistance, and abrasion resistance. ● Can be used for a wide range of applications such as boards, concrete walls, and peripheral equipment for machines and office equipment. ● Both inner ends are chamfered to prevent scratches on the surface of the object being penetrated. Specifications: ● Color: White ● Mounting hole dimensions (mm): 41 ● Dimensions (mm) A: 30 ● Dimensions (mm) C: 30 ● Dimensions (mm) E: 25 ● Dimensions (mm) G: 40 ● Dimensions (mm) H: 57 Material/Finish: ● Nylon
