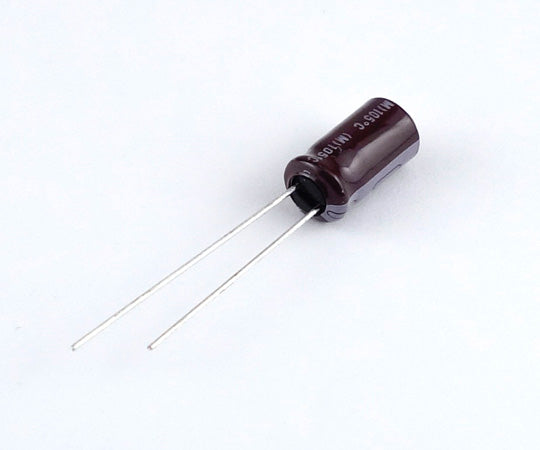

Aluminum electrolytic capacitor 50V 47μF (105℃ product) KMG50VB47M 1 piece

Nippon Chemi-Con's KMG type is the company's basic leaded electrolytic capacitor. The maximum operating temperature of this KMG is 105°C, but there is also a sister product, the SMG, which is rated at 85°C. KMG is a recommended replacement for the old KME. The company's products also include products with specialized characteristics, such as the LXV, which has low impedance and is suitable for smoothing switching regulators. Package: Radial Operating temperature range: -55℃ to +105℃ Rated voltage: 50V Capacitance: 47μF Capacitance tolerance: ±20% tan δ: 0.12 Ripple (120Hz.105℃): 110mArms Case size φDmm×L: 6.3mm×11mm Lead spacing: 2.5mm Lead diameter: 0.5mm Quantity: 1 piece
