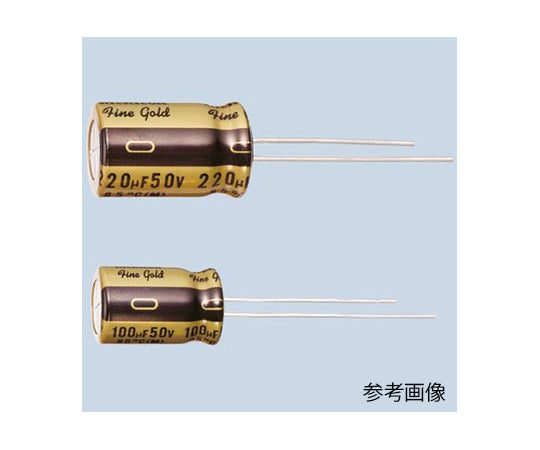

Aluminum electrolytic capacitor for audio 470μF 50V dc 1 bag (5 pieces) UFG1H471MHM 1 bag (5 pieces)

Aluminum electrolytic capacitors for audio devices, FG series (polarized) High quality audio components The latest electrode foil etching technology combined with MUSE's traditional vibration theory creates "pure gold" Wide bass and lively mid/treble, perfect for DVD, MD and other audiovisual devices PET sleeve (non-PVC) Lead-free plating on terminals Operating temperature range: -40 to +85°C Capacitance tolerance: ±20% Leakage current: l = max. 0.01 CV or 3 μA (whichever is greater) Durability: 85°C, 1000 hours Quantity: 1 bag (5 pieces) Voltage: 50V dc Mounting Type: Through Hole Dimensions: 16 (Dia.) x 25mm Height: 25mm Operating temperature Min: -40°C Lead pitch: 7.5mm Lead diameter: 0.8mm Lifespan: 1000h Diameter: 16mm Ripple current: 650mA Leakage current: 3 μA Tolerance: ±20% Tolerance (negative): -20% Tolerance (plus): 20% RoHS Compliance Status: Not Applicable Code number: 602-2602
