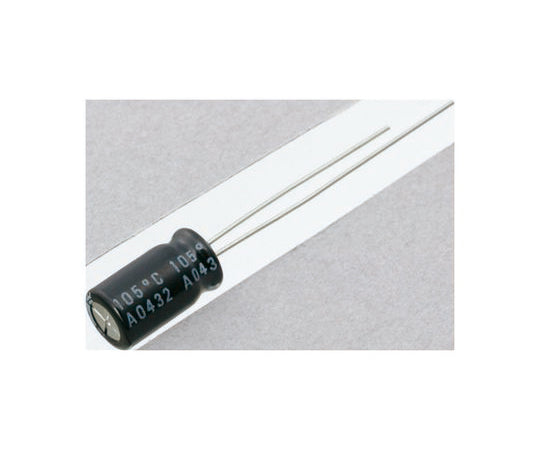

Aluminum electrolytic capacitor 120μF 16V dc 1 bag (5 pieces) UHE1C121MED 1 bag (5 pieces)

Aluminum electrolytic capacitor, HE series, 105°C Nichicon's HE series electrolytic capacitors offer low impedance, high reliability and a miniature solution. These compact electrolytic capacitors have a PET (non-PVC) sleeve and lead-free plating on the leads. Quantity: 1 bag (5 pieces) Voltage: 16V dc Mounting Type: Through Hole Dimensions: 6.3 (Dia.) x 11mm Height: 11mm Operating temperature Min: -40°C Lead pitch: 2.5mm Lead diameter: 0.5mm Lifespan: 5000h Diameter: 6.3mm Ripple current: 340mA Leakage current: 3 μA Tolerance: ±20% Tolerance (negative): -20% Tolerance (plus): 20% RoHS Compliance Status: Compliant Code number: 490-9743
