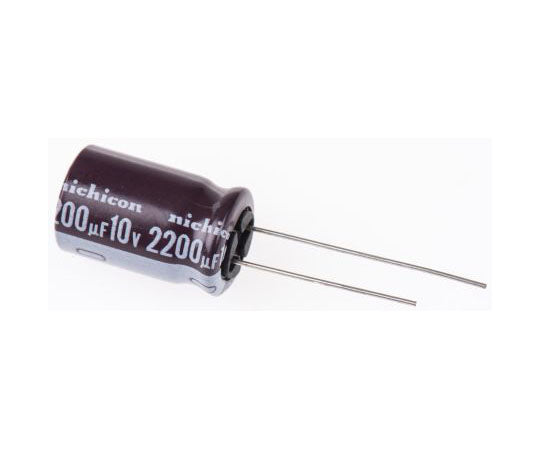

Aluminum electrolytic capacitor 2200μF 10V dc 1 bag (5 pieces) UPS1A222MHD 1 bag (5 pieces)

Nichicon PS Series Capacitors Nichicon PS Series Aluminum Electrolytic Capacitors are highly reliable polymer capacitors with a lifespan of up to 3000 hours. PS series capacitors feature a wide operating temperature range, high voltage, low impedance, and high ripple current. Features and Benefits: High reliability High ripple current Long life up to 3000 hours Lead-free reflow soldering Low ESR Wide temperature range Miniature size Quantity: 1 bag (5 pieces) Capacitance: 2200μF Mounting Type: Through Hole Dimensions: 12.5 (Dia.) x 20mm Height: 20mm Operating temperature mAx: +105°C Lead pitch: 5mm Lead diameter: 0.6mm Series: PS Diameter: 12.5mm Ripple current: 1.25A Leakage current: 4 μA Tolerance: ±20% Tolerance (negative): -20% Technology: Electrolysis RoHS Compliance Status: Compliant Code number: 519-3882
