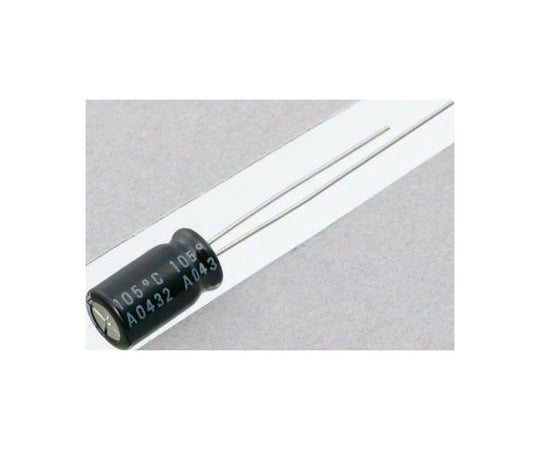

Aluminum electrolytic capacitor 3300μF 10V dc 1 bag (5 pieces) UHE1A332MHD 1 bag (5 pieces)

Aluminum electrolytic capacitor, HE series, 105°C Nichicon's HE series electrolytic capacitors offer low impedance, high reliability and a miniature solution. These compact electrolytic capacitors have a PET (non-PVC) sleeve and lead-free plating on the leads. Quantity: 1 bag (5 pieces) Voltage: 10V dc Mounting Type: Through Hole Dimensions: 12.5 (Dia.) x 25mm Height: 25mm Operating temperature Min: -40°C Lead pitch: 5mm Lead diameter: 0.6mm Lifespan: 8000h Diameter: 12.5mm Ripple current: 2.23A Leakage current: 3 μA Tolerance: ±20% Tolerance (negative): -20% Technology: Electrolysis RoHS Compliance Status: Compliant Code number: 490-9664
