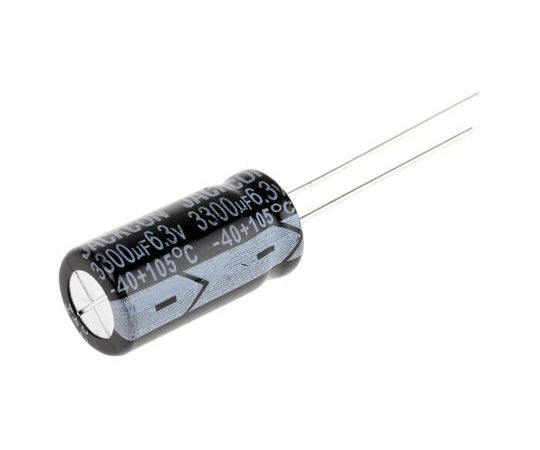

Aluminum electrolytic capacitor 3300μF 6.3V dc 1 bag (10 pieces) 711-0753 1 bag (10 pieces)

General purpose radial 6.3→16 V Axial RS Aluminum Electrolytic Capacitors, LHK Series 105°C Designing a safe ventilation structure Uses: Communication equipment, switching power supplies Quantity: 1 bag (10 pieces) Capacitance: 3300μF Mounting Type: Through Hole Dimensions: 10 (Dia.) x 20mm Height: 20mm Operating temperature mAx: +105°C Lead pitch: 5mm Lead diameter: 0.6mm Lifespan: 2000h Diameter: 10mm Ripple current: 970mA Leakage current: <=0.01 CV or 3 μA @ 1 min Tolerance: ±20% Tolerance (negative): -20% Dielectric Material Family: Aluminum Electrolytic RoHS Compliance Status: Compliant Code number: 711-0753
