Ionizer Blow Gun IoN-BG 1 piece
Ionizer Blow Gun IoN-BG 1 piece
Regular price
¥67,100
Regular price
Sale price
¥67,100
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Equipped with a white LED, you can work while checking for dust on the workpiece.
Operation and warning LEDs are located on both sides, allowing you to check operation at all times.
Equipped with a piezoelectric transformer, it has a safe design with no high voltage cables exposed to the outside.
The needle electrode can be easily cleaned and replaced using special tools.
The lightweight body reduces operator fatigue.
Ergonomic handle for optimal nozzle angle when gripped.
The mesh pattern has a non-slip finish that allows you to grip it firmly even with clean gloves. Size (mm): 36 x 102 x 150
- Weight(g):198
Ion generation method: AC high frequency corona discharge method
Ion balance: Within ±10V (at shipment/input air pressure 0.3MPa, measurement distance 150mm)
Ozone generation: 0.05 ppm or less (measurement distance 50 mm)
Air pressure used: 0.1 to 0.6MPa
Air flow rate: 180L/min (at 0.3MPa)

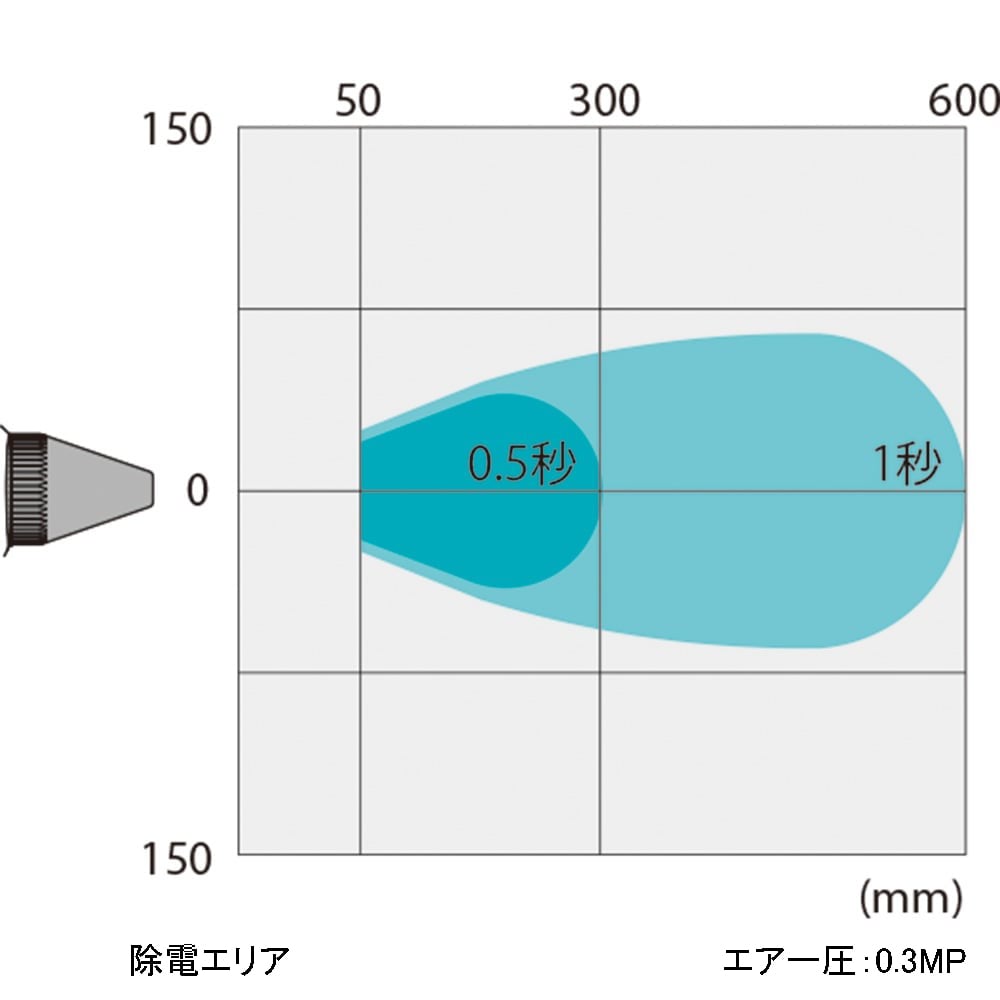

Static elimination time: 1 second or less (0.3MPa, measurement distance 150mm)
Distance: 50-300mm
Air hose used: Outer diameter φ6mm
Power supply: DC24±5% (AC100-240 AC adapter included)
Accessories: AC adapter (1.8m power cable), standard nozzle, nozzle for connecting fittings, screwdriver for replacing needle electrodes
