Ishiguro White Perforated Flange (Non-Gas Type) DA SOP-FF Type SS400 Equivalent 10K Nominal Size (A) 65 N10SOP-F-65A 1 pc

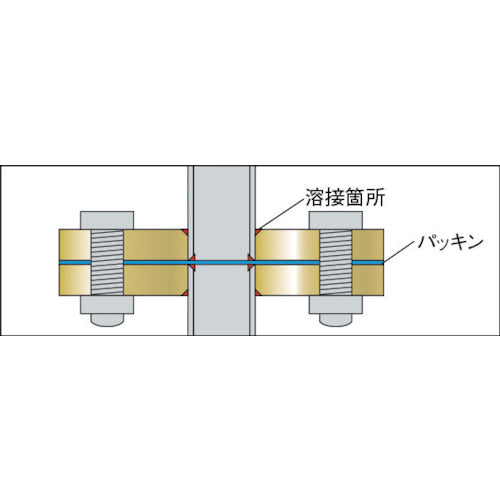

Catalog number: N10SOP-F-65A Features: ● JIS standard equivalent product. ● No need for troublesome plating removal work. ● Smooth welded surface allows for a clean finish even with an automatic welding machine. ● Zinc-specific gas during welding is also minimized. Applications: ● For piping under gentle conditions. Specifications: ● Nominal diameter A: 65 ● Nominal diameter B: 2 1/2 ● Inner diameter (mm): 77.1 ● Outer diameter (mm): 175 ● Thickness (mm): 18 ● Number of bolt holes (pcs): 4 ● Bolt hole diameter (mm): 19 ● Operating pressure (K): 10 ● Type: Slip-on ● Operating pressure: 10K Material/Finish: ● Steel (SS400 equivalent, zinc-plated finish)
